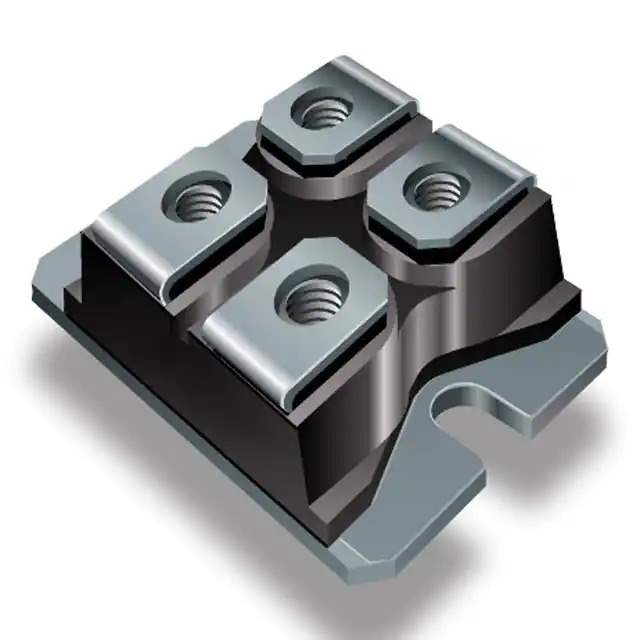

FA38SA50LC Real Image
Same model may have multiple batches, images only for reference.

FA38SA50LC

Part No FA38SA50LC
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 38A SOT-227
Datasheet
FA38SA50LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Vishay
Series HEXFET®
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 500 V
Current - Continuous Drain (Id) @ 25°C 38A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 130mOhm @ 23A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 420 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 6900 pF @ 25 V
Power Dissipation (Max) 500W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Supplier Device Package SOT-227
Package / Case SOT-227-4, miniBLOC
Base Product Number FA38
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 590544-FA38SA50LC
Ultra Librarian 3D Model Ultra Librarian FA38SA50LC CAD Model

Description

The FA38SA50LC is a N-channel MOSFET transistor from Vishay's HEXFET® series. It is designed for high-power applications and provides a drain-to-source voltage of 500V.

  • Channel Type: N-Channel
  • Series: HEXFET®
  • Drain-to-Source Voltage: 500V
  • Continuous Drain Current (@ 25°C): 38A
  • On-Resistance (Maximum): 130mΩ
  • Mounting: Chassis Mount
  • Gate Charge: 420nC
  • Input Capacitance: 6900pF
  • Operating Temperature: -55°C to 150°C
