The DMC504010R is a digital transistor (also called a bias resistor transistor or BRT) array manufactured by Panasonic. It integrates two NPN transistors with built-in bias resistors, significantly reducing the number of external components needed in a circuit. This simplifies circuit design, reduces board space, and improves reliability.

Applications:

• Digital circuit control.
• Inverter circuits.
• Switching circuits.
• Interface circuits.
• Driving LEDs and small loads.

Features:

• Dual NPN transistors with built-in bias resistors.
• Reduces component count and board space.
• Simplifies circuit design.
• Input resistor (R1) = 10 kΩ.
• Bias resistor (R2) = 10 kΩ.
• Collector current (Ic) = 100 mA (max).
• Collector-emitter voltage (Vceo) = 50 V (max).
• Surface Mount Device (SMD) package.

Benefits:

• Reduced component count simplifies circuit design and lowers BOM (Bill of Materials) cost.
• Smaller footprint allows for more compact circuit designs.
• Improved reliability due to fewer solder joints and external components.
• Simplified circuit design eliminates the need to calculate and select external bias resistors.
• Lower assembly costs due to fewer components to place and solder.

Additional Details:

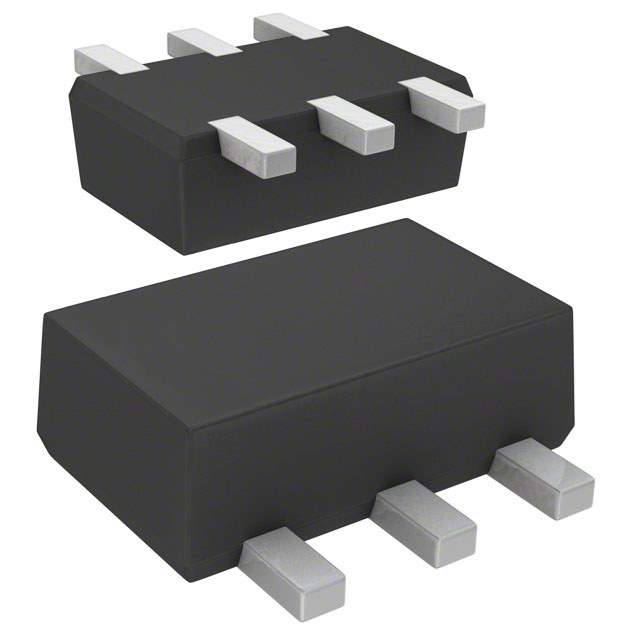

The DMC504010R is typically packaged in a small surface-mount package, such as SOT-363 (SC-88). The built-in resistors provide the necessary base bias for the transistors, eliminating the need for external resistors. The specified resistor values (10 kΩ) are a common choice for many general-purpose switching applications. The maximum collector current and collector-emitter voltage ratings define the limits for the transistor's operating range. This device is an ideal choice for applications where space and component count are critical.
