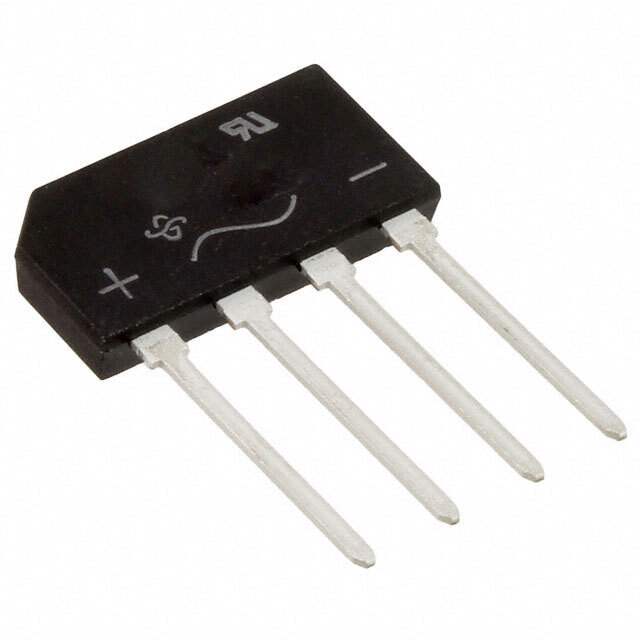

G2SB60-E3/45 Real Image
Same model may have multiple batches, images only for reference.

G2SB60-E3/45

Part No G2SB60-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE GPP 1.5A 600V GBL
Datasheet
G2SB60-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1V @ 750mA
Current - Reverse Leakage @ Vr 5μA @ 200V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBL
Win Source Part Number 120566-G2SB60-E3/45
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian G2SB60-E3/45 CAD Model

Description

The Vishay 120566-G2SB60-E3/45 is an active electronic component that has a medium popularity. It is a standard technology-based component that has a single-phase diode type.

  • Current - Average Rectified (Io): 1.5A
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 750mA
  • Current - Reverse Leakage @ Vr: 5μA @ 200V
  • Voltage - Peak Reverse (Max): 600V
  • Excellent choice for building high-quality electronic devices.
