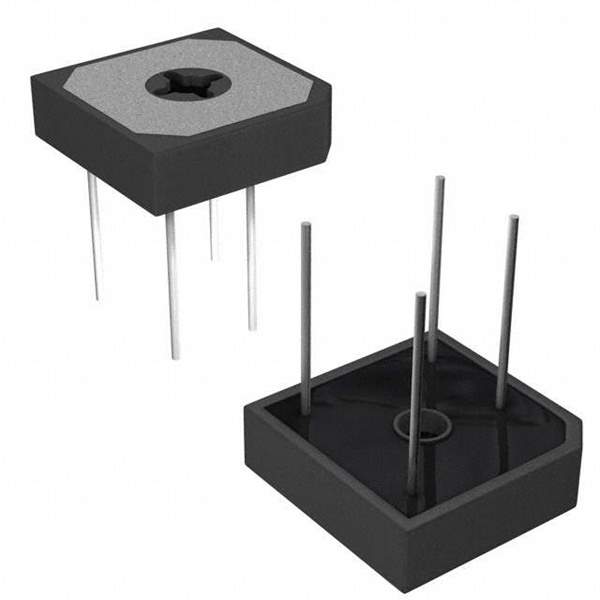

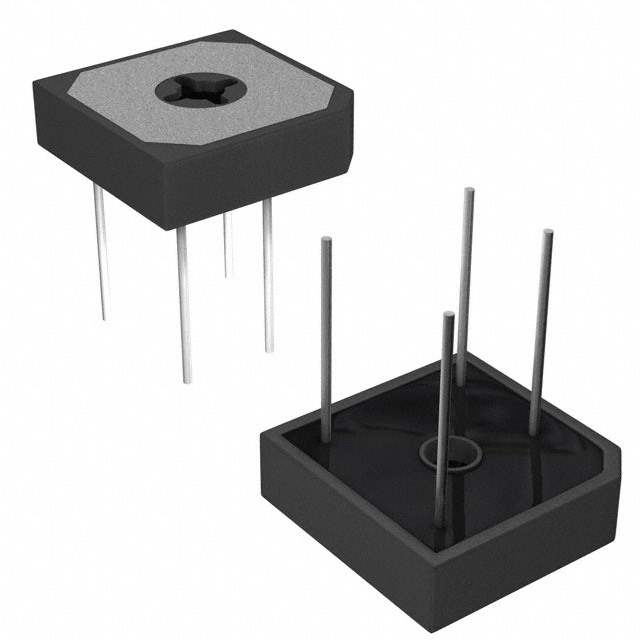

GBPC12005W-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC12005W-E4/51

Part No GBPC12005W-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE 1PH 12A 50V GBPC-W
Datasheet
GBPC12005W-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 50V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 6A
Current - Reverse Leakage @ Vr 5μA @ 50V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBPC-W
Win Source Part Number 130059-GBPC12005W-E4/51
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBPC12005W-E4/51 CAD Model

Description

The Vishay GBPC12005W-E4/51 is a single-phase diode that can handle an average rectified current of 12A.

  • Maximum Forward Voltage: 1.1V @ 6A
  • Peak Reverse Voltage: 50V
  • Reverse Leakage Current: 5μA @ 50V
  • Package: GBPC-W
  • Operating Temperature: -55°C to 150°C (TJ)

The diode is ideal for use in discrete semiconductor products and has a medium popularity in the open market.
