Same model may have multiple batches, images only for reference.

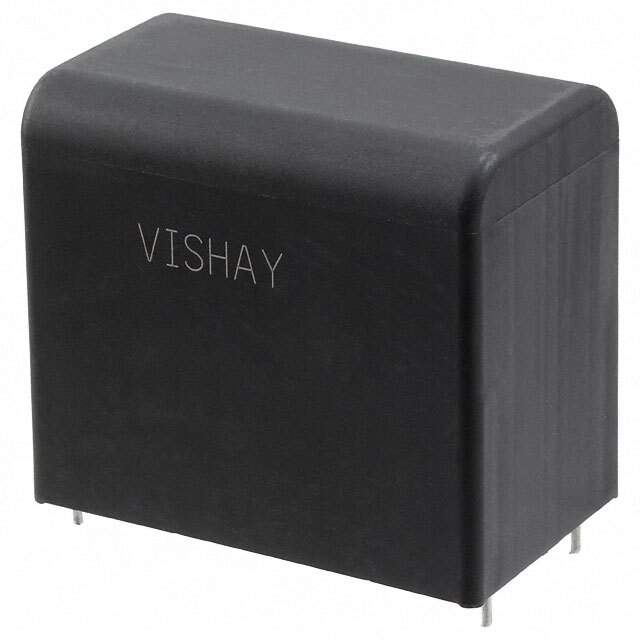

MKP1848C67560JY5 Real Image
Same model may have multiple batches, images only for reference.

MKP1848C67560JY5

Part No MKP1848C67560JY5
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 75UF 5% 600VDC RADIAL / 75 µF Film Capacitor 600V Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
MKP1848C67560JY5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Manufacturer Vishay Beyschlag/Draloric/BC Components
Packaging Bulk
Capacitance 75 µF
Tolerance ±5%
Voltage Rating - DC 600V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 3.5 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Through Hole
Case / Package Radial - 4 Leads
Size / Dimension 2.264" L x 1.378" W (57.50mm x 35.00mm)
Height - Seated (Max) 1.969" (50.00mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications DC Link, DC Filtering
Features Low ESR; Low ESL; Long Life
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0070
Other Part Number MKP1848C67560JY5-ND,1848C67560JY5,2870-MKP1848C67560JY5
Standard Package 40
Win Source Part Number 1329499-MKP1848C67560JY5
Ultra Librarian 3D Model Ultra Librarian MKP1848C67560JY5 CAD Model

Description

The MKP1848C67560JY5 is a film capacitor from Vishay Beyschlag/Draloric/BC Components with a capacitance of 75 µF and a tolerance of ±5%.

  • Capacitance: 75 µF
  • Tolerance: ±5%
  • Voltage Rating: 600V DC
  • Dielectric Material: Polypropylene (PP), metallized
  • Size/Dimension: 2.264" L x 1.378" W (57.50mm x 35.00mm)
  • Height-Seated (Max): 1.969" (50.00mm)
  • Mounting Type: Through-Hole
  • Case/Package: Radial - 4 Leads
  • ECCN: EAR99
  • ROHS3: Compliant
  • Temperature Range: -55°C ~ 105°C
  • ESR (Equivalent Series Resistance): 3.5 mOhms
  • Application: DC Link and DC Filtering
  • Standard Package: 40
