Same model may have multiple batches, images only for reference.

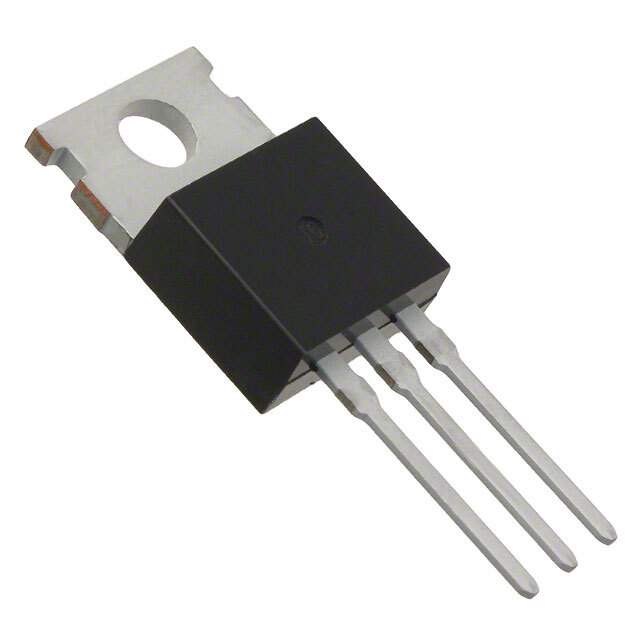

SBLF1040CT-E3/45 Real Image
Same model may have multiple batches, images only for reference.

SBLF1040CT-E3/45

Part No SBLF1040CT-E3/45
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 40V ITO220 / Diode Schottky 40V 10A 3-Pin(3+Tab) ITO-220AB Tube
Datasheet
SBLF1040CT-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Part Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Maximum) @ If 550mV @ 5A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 40V
Operating Temperature - Junction -40°C ~ 125°C
Mounting Style Through Hole
Package TO-220-3 Full Pack, Isolated Tab
Manufacturer Package ITO-220AB
Win Source Part Number 793891-SBLF1040CT-E3/45
Popularity Medium
Supply and Demand Status Limited
Family Name SBLF1040CT
Introduction Date February 22, 1999
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SBLF1040CT-E3/45 CAD Model

Description

The Vishay Semiconductor Diodes Division SBLF1040CT is a high-quality Schottky diode.

  • Maximum Reverse Voltage: 40V
  • Maximum Forward Voltage: 550mV @ 5A
  • Average Rectified Current: 5A
  • Fast Recovery Speed: 200mA (Io)
  • Package: TO-220-3 Full Pack, Isolated Tab
  • Diode Configuration: One pair common cathode
  • Operating Temperature: -40°C to 125°C
  • Halogen-free: No
  • Popularity: Yes
  • Threat of Fake Products: 41%
  • Supply and Demand Status: Limited
