Same model may have multiple batches, images only for reference.

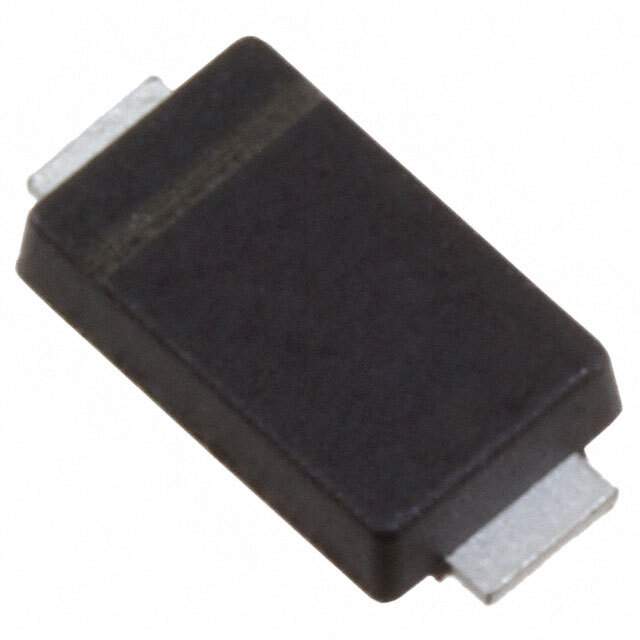

SE30PAJHM3/I Real Image
Same model may have multiple batches, images only for reference.

SE30PAJHM3/I

Part No SE30PAJHM3/I
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SE30PAJHM3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101, eSMP®
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.16 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.3 µs
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Capacitance @ Vr, F 13pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package DO-221BC (SMPA)
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number SE30
Other Names 112-SE30PAJHM3/ITR,SE30PAJHM3/I,112-SE30PAJHM3/ICT,112-SE30PAJHM3/IDKR
Standard Package 14,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281517-SE30PAJHM3/I
Ultra Librarian 3D Model Ultra Librarian SE30PAJHM3/I CAD Model

Description

The SE30PAJHM3/I is a standard recovery diode rectifier manufactured by Vishay General Semiconductor - Diodes Division.

  • Win Source Part Number: 1281517
  • Series: Automotive, AEC-Q101, eSMP series
  • Voltage DC Reverse: 600 V
  • Average Rectified Current: 3A
