Same model may have multiple batches, images only for reference.

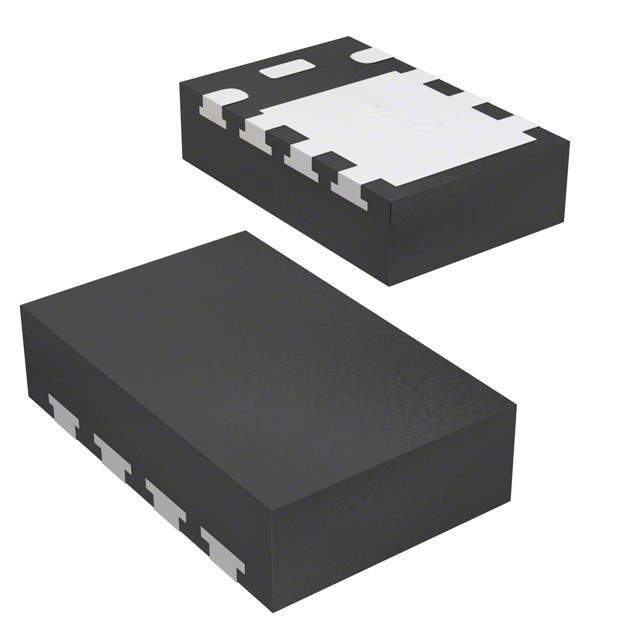

SI5456DU-T1-GE3 Real Image
Same model may have multiple batches, images only for reference.

SI5456DU-T1-GE3

Part No SI5456DU-T1-GE3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Vishay Siliconix
Series TrenchFET®
Package Tape & Reel
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 10mOhm @ 9.3A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 30 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1200 pF @ 10 V
Power Dissipation (Max) 3.1W (Ta), 31W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PowerPAK® ChipFET™ Single
Package / Case PowerPAK® ChipFET™ Single
Base Product Number SI5456
Other Names SI5456DU-T1-GE3CT,SI5456DU-T1-GE3TR,SI5456DU-T1-GE3DKR,SI5456DUT1GE3
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1277557-SI5456DU-T1-GE3
Ultra Librarian 3D Model Ultra Librarian SI5456DU-T1-GE3 CAD Model

Description

The Vishay SI5456DU-T1-GE3 is an N-channel MOSFET that comes in a PowerPAK ChipFET Single package.

  • Breakdown Voltage: 20V
  • Maximum Rds On: 10mOhm @ 9.3A, 10V
  • Gate Charge: 30 nC @ 10 V
  • Input Capacitance: 1200 pF @ 10 V
  • Operating Temperature Range: -55°C to 150°C
  • Status: obsolete
  • Supply and Demand Status: balance
  • Packaging: reel of 3000 pcs
