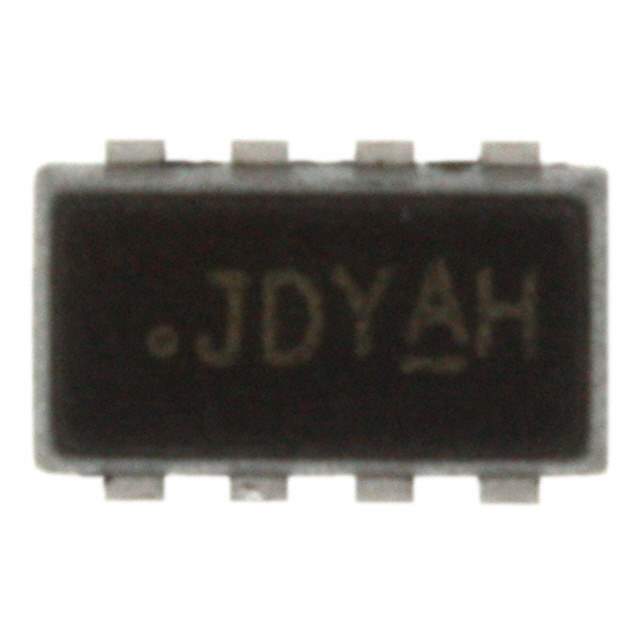

The SI5856DC is a P-Channel MOSFET manufactured by Vishay. This MOSFET is designed for load switching and power management applications, providing efficient and reliable performance in various electronic circuits.

Applications

• Load switching: Used to switch power to various loads.
• Power management: Employed in power management circuits for efficiency.
• Battery management systems: Controls power flow in battery systems.
• DC-DC converters: Used in DC-DC conversion circuits.
• Motor control: Controls the speed and direction of small motors.

Features

• P-Channel MOSFET: Suitable for applications requiring P-Channel characteristics.
• Low On-Resistance (RDS(on)): Minimizes power loss and improves efficiency.
• Low Threshold Voltage (VGS(th)): Requires minimal gate voltage for activation.
• Surface Mount Device (SMD): Compact size for high-density PCB layouts.
• RoHS Compliant: Environmentally friendly, lead-free construction.

Benefits

• High Efficiency: Low on-resistance minimizes power loss.
• Simplified Drive Circuitry: Low threshold voltage simplifies drive requirements.
• Space Saving: Small SMD package reduces board size.
• Environmentally Friendly: RoHS compliant, lead-free construction.

Additional Details

The SI5856DC has a drain-source voltage (VDS) rating typically around -30V. The continuous drain current (ID) is around -4A. The on-resistance (RDS(on)) is very low, typically a few milliohms at a gate-source voltage of -10V. It comes in a PowerPAK SO-8 package. The operating temperature ranges from -55°C to +150°C. It's commonly used in portable devices and other applications needing efficient load switching.
