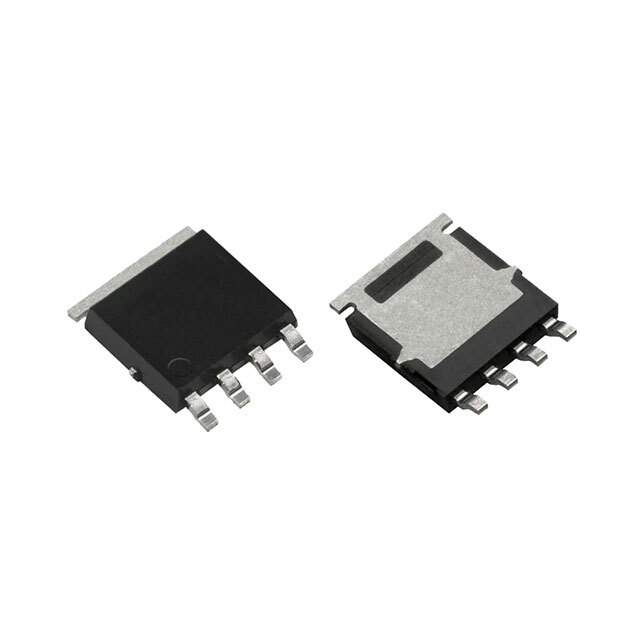

Same model may have multiple batches, images only for reference.

SQJ423EP-T1_BE3

Name: SQJ423EP-T1_BE3
Brand: Vishay
SKU: 1350622
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SQJ423EP-T1_BE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	P-CHANNEL 40-V (D-S) 175C MOSFET / P-Channel 40 V 55A (Tc) 68W (Tc) Surface Mount PowerPAK® SO-8
Datasheet	SQJ423EP-T1_BE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Vishay Siliconix
Package	Tape & Reel
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	55A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	14mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4500 pF @ 25 V
Power Dissipation (Max)	68W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1350622-SQJ423EP-T1_BE3
Ultra Librarian 3D Model	Ultra Librarian SQJ423EP-T1_BE3 CAD Model

Alternative Products

Description

The Vishay SQJ423EP-T1_BE3 is a P-Channel MOSFET with a drain-source voltage of 40V and a power dissipation of 68W (Tc).

FET Type: P-Channel
Vds (Voltage Drain Source Max): 40V
Power Dissipation (Max): 68W (Tc)
Vgs (Max): ±20V
Package / Case: PowerPAK SO-8
Rds On (Max) @ Id, Vgs: 14mOhm @ 10A, 10V
Qg (Gate Charge) (Max) @ Vgs: 130 nC @ 10 V
Ciss (Input Capacitance) (Max) @ Vds: 4500 pF @ 25 V
Category: Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single
