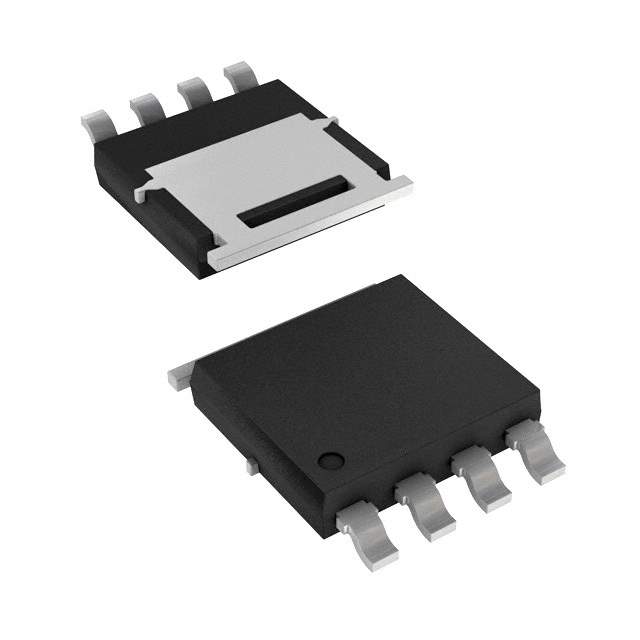

SQJA00EP-T1_GE3

Name: SQJA00EP-T1_GE3
Brand: Vishay
SKU: 1324690
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SQJA00EP-T1_GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 60V 30A PPAK SO-8 / N-Channel 60 V 30A (Tc) 48W (Tc) Surface Mount PowerPAK® SO-8
Datasheet	SQJA00EP-T1_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Vishay Siliconix
Packaging	Reel - TR
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	13mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1700 pF @ 25 V
Power Dissipation (Max)	48W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Case / Package	PowerPAK® SO-8
Base Product Number	SQJA00
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	SQJA00EP-T1_GE3TR,SQJA00EP-T1_GE3DKR,SQJA00EP-T1_GE3CT
Standard Package	3,000
Win Source Part Number	1324690-SQJA00EP-T1_GE3
Ultra Librarian 3D Model	Ultra Librarian SQJA00EP-T1_GE3 CAD Model

Alternative Products

Description

The Vishay Siliconix SQJA00EP-T1_GE3 is an N-channel MOSFET transistor.

Vdss: 60 V
Current Rating: 30A (Tc)
Power Dissipation: 48W (Tc)
Rds On (Max): 13mOhm @ 10A, 10V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1700 pF @ 25 V
Vgs(th) (Max) @ Id: 3.5V @ 250μA
Mounting: Surface Mount
Package: PowerPAK® SO-8
Drive Voltage: 10V (Max Rds On, Min Rds On)
Temperature Range: -55°C ~ 175°C (TJ)
ECCN: EAR99
MSL Level: 1 (Unlimited)
