Same model may have multiple batches, images only for reference.

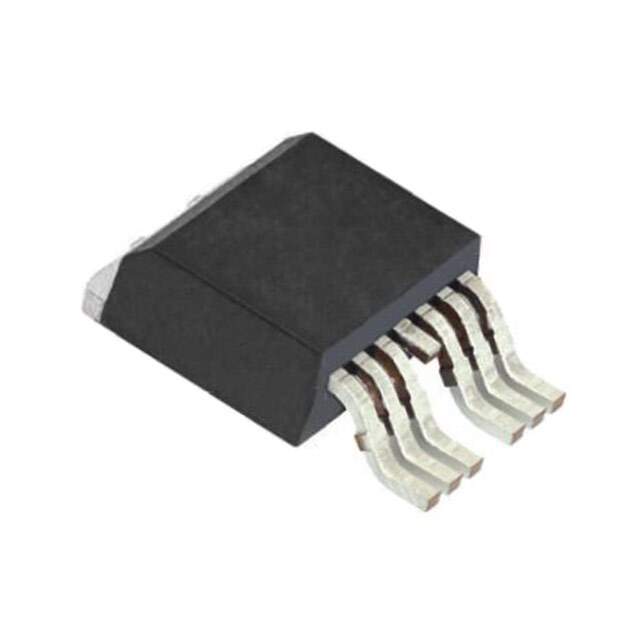

SQM40014EM_GE3 Real Image
Same model may have multiple batches, images only for reference.

SQM40014EM_GE3

Part No SQM40014EM_GE3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
SQM40014EM_GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Vishay Siliconix
Series Automotive, AEC-Q101, TrenchFET®
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 200A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 1mOhm @ 35A, 10V
Vgs(th) (Max) @ Id 3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 250 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 15525 pF @ 25 V
Power Dissipation (Max) 375W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package TO-263-7
Package / Case TO-263-7, D²Pak (6 Leads + Tab)
Base Product Number SQM40014
Other Names SQM40014EM_GE3CT,SQM40014EM_GE3TR,SQM40014EM_GE3DKR
Standard Package 800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1277804-SQM40014EM_GE3
Ultra Librarian 3D Model Ultra Librarian SQM40014EM_GE3 CAD Model

Description

The Vishay Siliconix MOSFET with Win Source Part Number 1277804-SQM40014EM_GE3 is a high-performance N-Channel MOSFET.

  • Series: TrenchFET series
  • Applications: automotive applications
  • Package: TO-263-7, D²Pak (6 Leads + Tab)
  • Drain to Source Voltage: 40V
  • Continuous Drain Current: 200A (Tc) @ 25°C
  • Rds On (Max) @ Id, Vgs: 1mOhm @ 35A, 10V
  • Gate Charge (Qg) (Max) @ Vgs: 250 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 15525 pF @ 25 V
  • Temperature Range: -55°C to 175°C (TJ)
