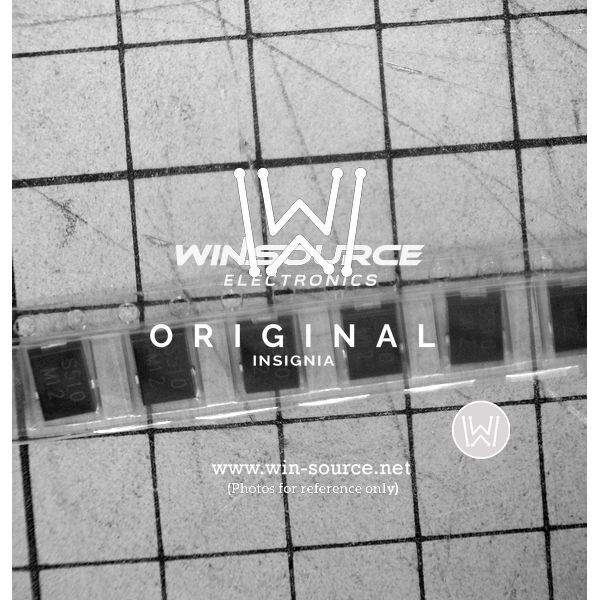

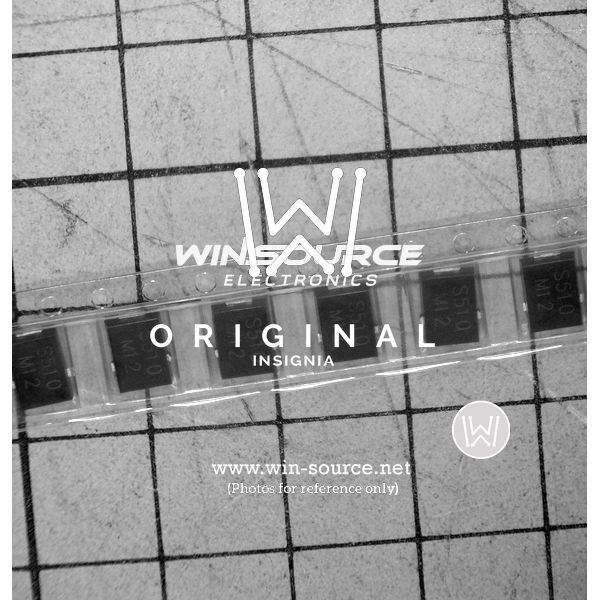

SS5P10-M3/86A Real Image SS5P10-M3/86A real image6475 SS5P10-M3/86A real image6476
Same model may have multiple batches, images only for reference.
SS5P10-M3/86A Real Image SS5P10-M3/86A real image6475 SS5P10-M3/86A real image6476
SS5P10-M3/86A Real Image SS5P10-M3/86A real image6475 SS5P10-M3/86A real image6476
Same model may have multiple batches, images only for reference.

SS5P10-M3/86A

Part No SS5P10-M3/86A
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 5A TO277A
Datasheet
SS5P10-M3/86A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 880mV @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 15μA @ 100V
Capacitance @ Vr, F 130pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package TO-277A (SMPC)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 030858-SS5P10-M3/86A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management, Automotive, Commercial, Industrial
Ultra Librarian 3D Model Ultra Librarian SS5P10-M3/86A CAD Model

Description

The SS5P10-M3/86A is a Schottky diode from Vishay, designed for use in power management, automotive, commercial, and industrial applications.

  • Reverse Voltage: 100V
  • Average Rectified Current: 5A
  • Forward Voltage: 880mV @ 5A
  • Reverse Leakage Current: 15μA @ 100V
  • Capacitance: 130pF @ 4V and 1MHz
  • Package: TO-277A (SMPC)
  • Mounting: SMD (SMT) technology
  • Temperature Range: -55°C to 150°C
  • Recovery Speed: 200mA (Io)
