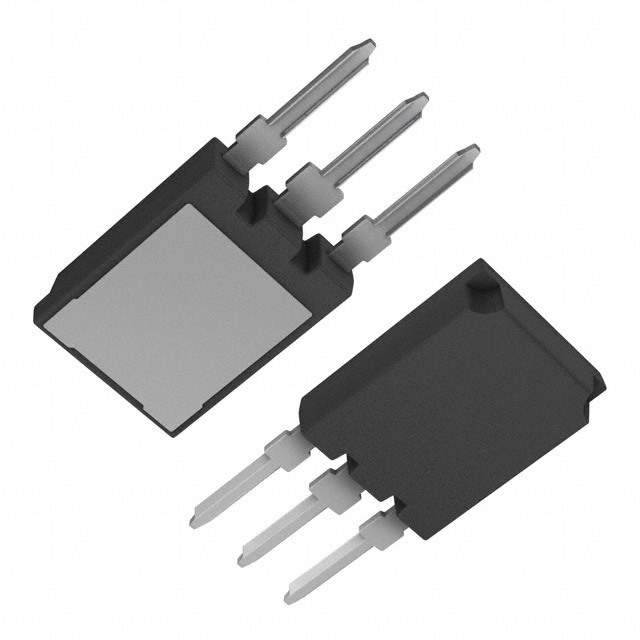

VS-70TPS12PBF

Name: VS-70TPS12PBF
Brand: Vishay
SKU: 421296
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VS-70TPS12PBF
Manufacturer	Vishay
Catalog	SCRs - Single
Description	SCR PH CONTR 1200V 70A SUPER-247
Datasheet	VS-70TPS12PBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Tube/Rail
Status	Active
Voltage - Off State	1200V
Voltage - Gate Trigger (Vgt) (Max)	1.5V
Current - Gate Trigger (Igt) (Max)	100mA
Voltage - On State (Vtm) (Max)	1.4V
Current - On State (It (AV)) (Max)	70A
Current - On State (It (RMS)) (Max)	75A
Current - Hold (Ih) (Max)	200mA
Current - Off State (Max)	1mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1400A @ 50Hz
SCR Type	Standard Recovery
Temperature Range - Operating	-40°C to 125°C
Mounting	Through Hole
Case / Package	SUPER-247 (TO-274AA)
Win Source Part Number	1006937-VS-70TPS12PBF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian VS-70TPS12PBF CAD Model

Alternative Products

Description

The VS-70TPS12PBF is a standard recovery SCR (Silicon Controlled Rectifier) from Vishay.

SCR Type: Standard Recovery
Voltage - Off State: 1200V
Current - On State (It (AV)) (Max): 70A
Voltage - Gate Trigger (Vgt) (Max): 1.5V
Current - Gate Trigger (Igt) (Max): 100mA
Voltage - On State (Vtm) (Max): 1.4V
Current - Non Rep. Surge 50, 60Hz (Itsm): 1400A @ 50Hz
Operating Temperature: -40°C ~ 125°C
Package / Case: SUPER-247 (TO-274AA)
