Same model may have multiple batches, images only for reference.

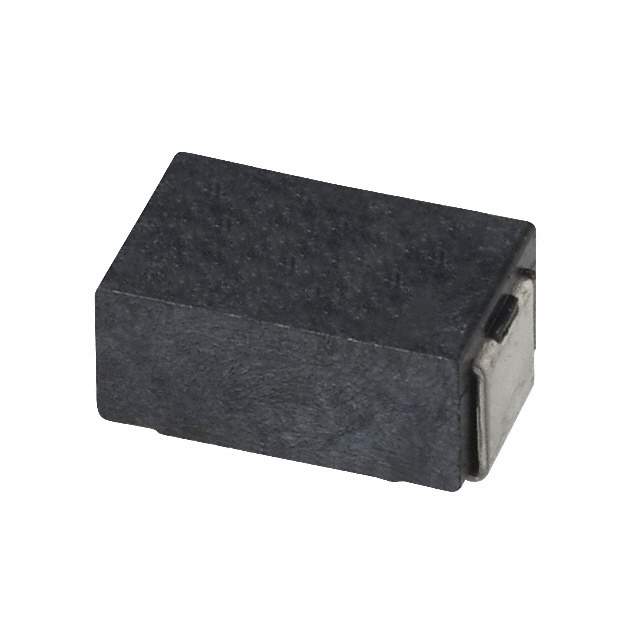

WSC2515R5000FEA Real Image
Same model may have multiple batches, images only for reference.

WSC2515R5000FEA

Part No WSC2515R5000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.5 OHM 1% 1W 2515
Datasheet
WSC2515R5000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Packaging Reel
Resistance 500 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Wirewound
Features Pulse Withstanding
Temperature Coefficient ±90ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Manufacturer Package 2515 J-Lead
Supplier Device Package 2515
Dimension 0.250" L x 0.150" W (6.35mm x 3.81mm)
Height - Seated (Maximum) 0.125" (3.17mm)
Number of Terminations 2
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810263-WSC2515R5000FEA
Ultra Librarian 3D Model Ultra Librarian WSC2515R5000FEA CAD Model

Description

The Vishay Dale WSC2515R5000FEA is a medium popularity electronic component with limited supply and demand status.

  • Component Type: Wirewound
  • Tolerance: ±1%
  • Temperature Coefficient: ±90ppm/°C
  • Power: 1W
  • Terminations: 2
  • Resistance: 500 mOhms
  • Device Package: 2515
  • Dimension: 0.250" L x 0.150" W (6.35mm x 3.81mm)
  • Height - Seated (Maximum): 0.125" (3.17mm)
  • Package Type: Reel
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (unlimited)
