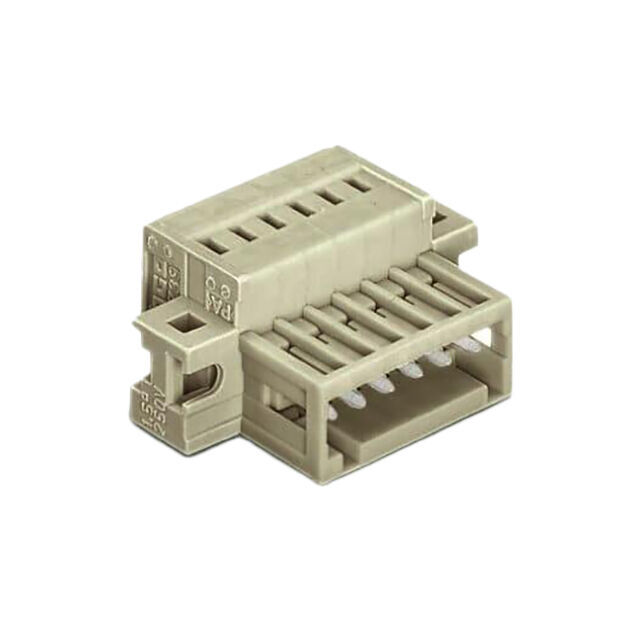

734-304/019-000 WAGO Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

734-304/019-000

Part No 734-304/019-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description 1-CONDUCTOR MALE CONNECTOR, CAGE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsTerminal BlocksHeaders, Plugs and Sockets
Manufacturer WAGO Corporation
Series MCSMINI
Packaging Bulk
Part Status Active
Type Plug, Male Pins
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.138" (3.50mm)
Plug Wire Entry 180°
Termination Style Screwless - Spring Cage, Tension Clamp
Mounting Type Free Hanging (In-Line)
Current - IEC 10A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 14-28 AWG
Wire Gauge or Range - mm2 0.08-1.5mm2
Color Gray
Operating Temperature -60°C ~ 100°C
Contact Mating Finish Tin
Features Mounting Flange
Material Flammability Rating UL94 V-0
Wire Strip Length 6-7mm
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.528" (13.40mm)
Ultra Librarian 3D Model Ultra Librarian 734-304/019-000 CAD Model
