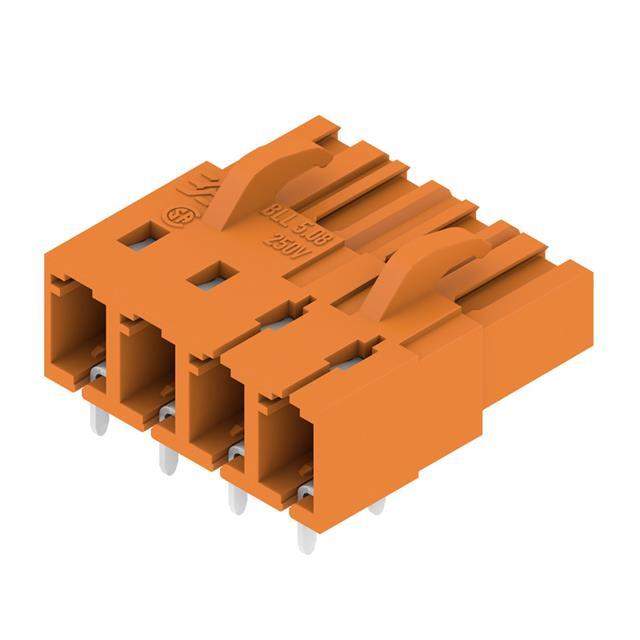

1622960000 Real Image
Same model may have multiple batches, images only for reference.

1622960000

Part No 1622960000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS 90DEG 5.08MM / 4 Position Terminal Block Header, Female Sockets 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate BL
Package Bulk
Type Header, Female Sockets
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 23A
Voltage - IEC 400 V
Current - UL 15 A
Voltage - UL 300 V
Color Orange
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Features Retention Latches
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.406" (10.31mm)
Standard Package 90
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340226-1622960000
Ultra Librarian 3D Model Ultra Librarian 1622960000 CAD Model

Description

The 1340226-1622960000 from Weidmüller is a header, female sockets terminal block from the Omnimate BL series.

  • Positions Per Level: 4
  • Number of Levels: 1
  • Current - IEC: 23A
  • Current - UL: 15A
  • Voltage - IEC: 400V
  • Voltage - UL: 300V
  • Operating Temperature: -50°C to 100°C
