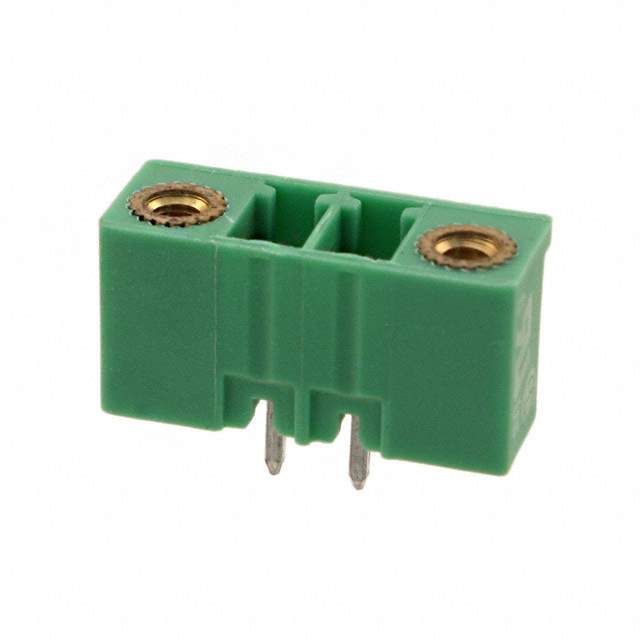

1793790000 Real Image
Same model may have multiple batches, images only for reference.

1793790000

Part No 1793790000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS VERT 3.81MM / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Datasheet
1793790000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SC
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 17.5A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 300 V
Color Green
Temperature Range - Operating -50°C ~ 120°C
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Ingress Protection IP20
Contact Material Copper Alloy
Housing Material Polyamide (PA) , Nylon, Glass Filled
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.362" (9.20mm)
Standard Package 96
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350178-1793790000
Ultra Librarian 3D Model Ultra Librarian 1793790000 CAD Model

Description

The Weidmüller Omnimate SC header is a male pin connector with shrouded sides, designed for use in terminal blocks.

  • Positions Per Level: 2
  • Number of Levels: 1
  • Pitch: 0.150" (3.81mm)
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Current Rating (IEC): 17.5A
  • Current Rating (UL): 10A
  • Voltage Rating (IEC): 320V
  • Voltage Rating (UL): 300V
  • Mounting: Through-Hole
  • Temperature Range: -50°C ~ 120°C
