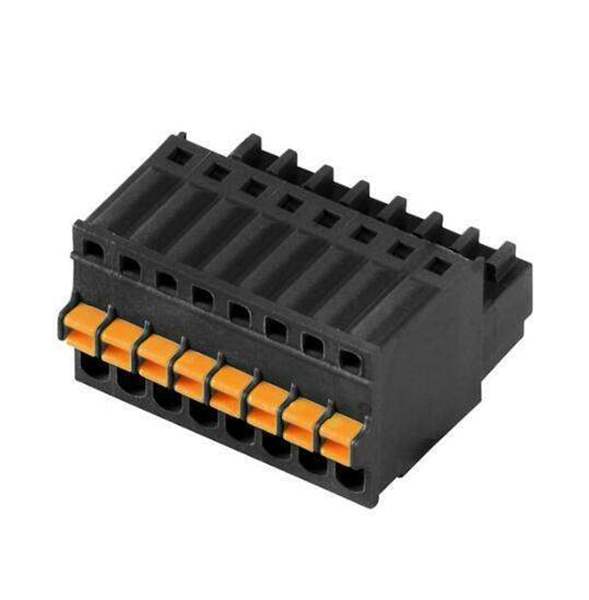

2438860000 Weidmüller
Same model may have multiple batches, images only for reference.

2438860000

Part No 2438860000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description PCB PLUG-IN CONNECTOR, 2.50 MM,
Datasheet
2438860000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Package Box
Product Status Active
Win Source Part Number WS1207262-2438860000
Package Box
Product Status Active
Type Plug, Female Sockets
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.098" (2.50mm)
Plug Wire Entry 180°
Termination Style Screwless - Leg Spring, Push-In Spring
Mounting Type Free Hanging (In-Line)
Current - IEC 6A
Voltage - IEC 320V
Current - UL 5A
Voltage - UL 150V
Wire Gauge or Range - AWG 20-28 AWG
Wire Gauge or Range - mm2 0.08-0.5mm²
Color Black
Operating Temperature -40°C ~ 105°C
Contact Mating Finish Tin
Features Push Button Actuated
Ultra Librarian 3D Model Ultra Librarian 2438860000 CAD Model

Description

PUSH IN - Weidmüller's innovative connection system simplifies the wire connection process. The benefits for users and applications: • High component density because of small pitch. Simply insert the prepared wire - and you're done<br /> • Simplified processing, thanks to integrated push buttons for opening the terminal point<br /> • Intuitive handling – since the conductor entry and handling areas are clearly separated<br />
