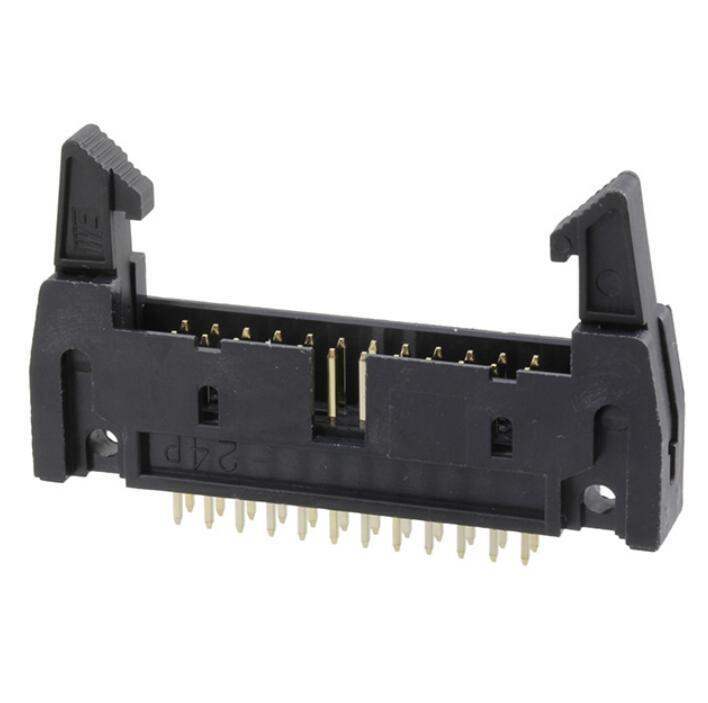

Same model may have multiple batches, images only for reference.
61202422821 Würth Elektronik
Same model may have multiple batches, images only for reference.

61202422821

Part No 61202422821
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN HEADER VERT 24POS 2.54MM
Datasheet
61202422821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202978-61202422821
Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series WR-BHD
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Row Spacing - Mating 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian 61202422821 CAD Model

Description

The WR-BHD series male pin header from Würth Elektronik is a versatile connector designed for various applications.

  • Pitch: 0.100" (2.54mm)
  • Package: Tray
  • Contact Type: Male Pin
  • Status: Active
  • Cross-Reference: Available
  • Series: WR-BHD
  • Manufacturer: Würth Elektronik
