Same model may have multiple batches, images only for reference.

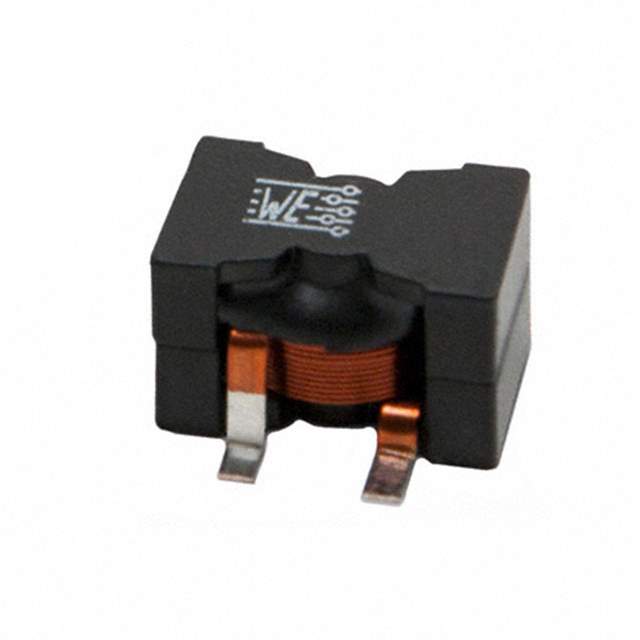

7443631500 Real Image
Same model may have multiple batches, images only for reference.

7443631500

Part No 7443631500
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 14A 8.7 MOHM SMD
Datasheet
7443631500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 15 µH
Tolerance ±15%
Current Rating (Amps) 14 A
Current - Saturation (Isat) 21A
Shielding Shielded
DC Resistance (DCR) 8.7mOhm
Frequency - Self Resonant 12.8MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.858" L x 0.846" W (21.80mm x 21.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857375-7443631500
Ultra Librarian 3D Model Ultra Librarian 7443631500 CAD Model

Description

The WE-HCF series is a line of fixed inductors designed for use in electronic circuits.

  • Series: WE-HCF
  • Core Material: Manganese zinc ferrite (MnZn)
  • Inductance: 15 µH
  • Tolerance: ±15%
  • Size: 0.858" L x 0.846" W (21.80mm x 21.50mm)
  • Height: 0.571" (14.50mm)
  • DC Resistance (DCR): 8.7mOhm
  • Current Rating: 14A
  • Temperature Range: -40°C to 125°C
  • Package: Tape & reel
  • Pieces Per Package: 100
  • Self-Resonant Frequency: 12.8MHz
