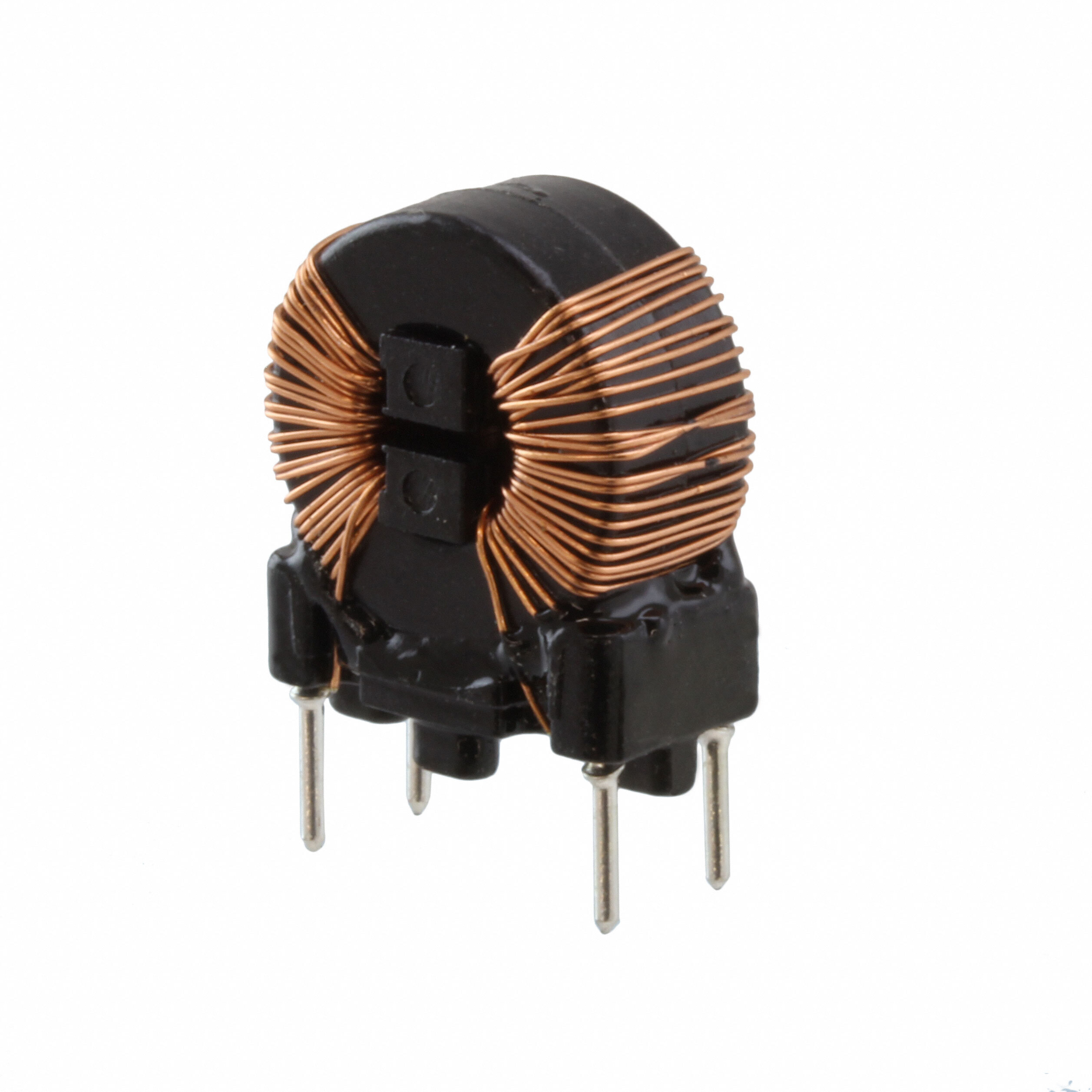

7446121018

Part No 7446121018
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 18MH 500MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 18 mH @ 10 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 750mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.728" L x 0.531" W (18.50mm x 13.50mm)
Height (Max) 0.807" (20.50mm)
Case / Package Vertical, 4 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1507132-7446121018
Ultra Librarian 3D Model Ultra Librarian 7446121018 CAD Model
