Same model may have multiple batches, images only for reference.

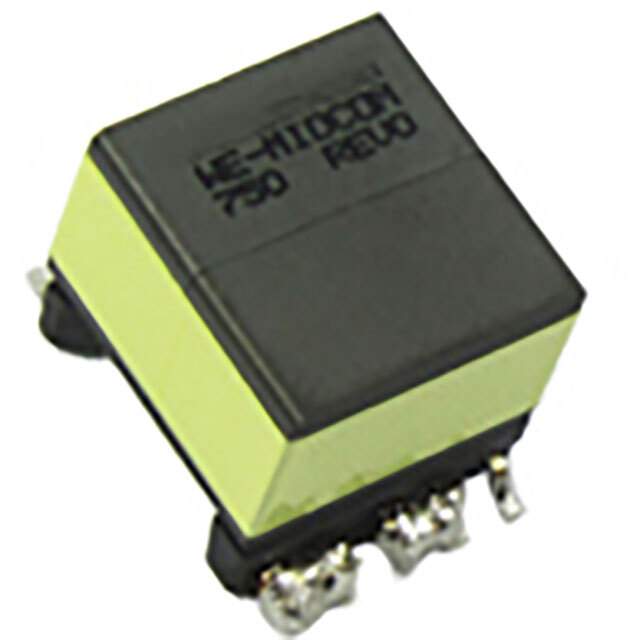

750311320 Real Image
Same model may have multiple batches, images only for reference.

750311320

Part No 750311320
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description POWER OVER ETHERNET TRANSFORMER / TRANSFORMER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type For DC/DC Converters
Applications Power Over Ethernet (PoE)
Chipset Manufacturer Texas Instruments
Voltage - Primary 33 ~ 57V
Voltage - Auxiliary 12V at 10mA
Voltage - Isolation 1500Vrms
Inductance at Frequency 100μH at 100kHz
Frequency 250kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Dimension 0.530" L x 0.699" W (13.46mm x 17.75mm)
Height - Seated (Maximum) 0.500" (12.70mm)
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809824-750311320
Ultra Librarian 3D Model Ultra Librarian 750311320 CAD Model

Description

This DC/DC converter is designed by Würth Elektronik and is ideal for use in Power over Ethernet (PoE) applications.

  • Voltage Isolation: 1500Vrms
  • Voltage Range: 33 to 57V
  • Frequency: 250kHz
  • Mounting Type: SMD
  • Chipset Manufacturer: Texas Instruments
  • Dimension: 0.530" L x 0.699" W (13.46mm x 17.75mm)
  • Height Seated: 0.500" (12.70mm)
  • Manufacturer Pack Quantity: 200
  • MSL Level: 1 (Unlimited)
  • Inductance @ Frequency: 100μH @ 100kHz
  • Voltage Auxiliary: 12V @ 10mA
