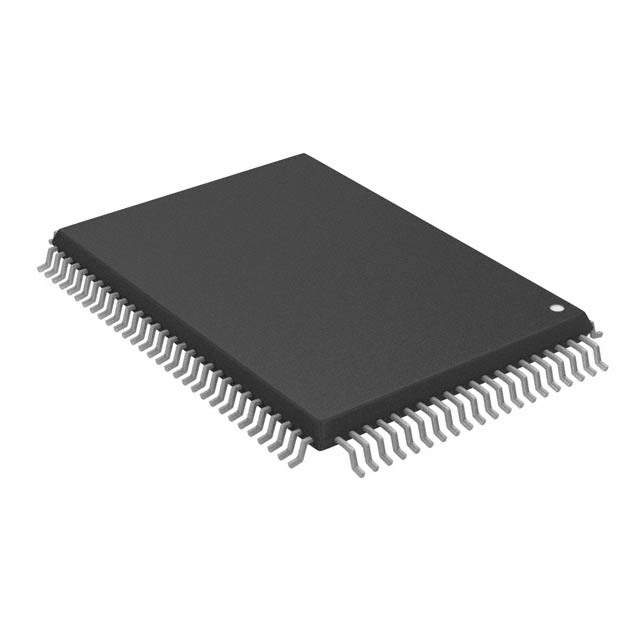

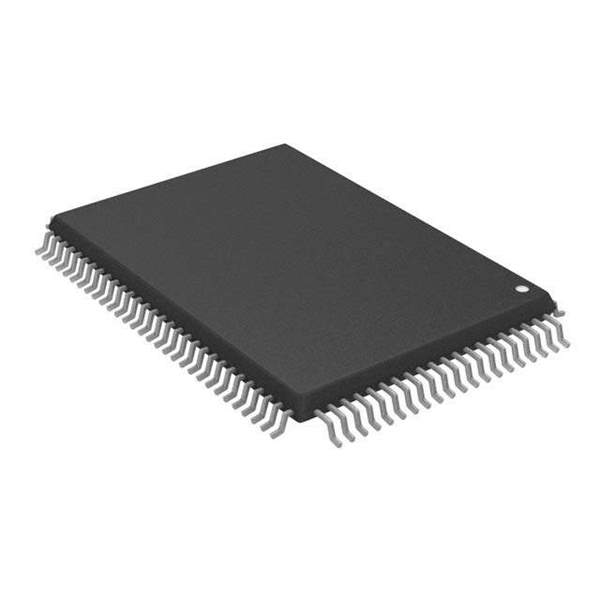

The XC3030-100PQ100C is a member of the XC3000 family of Field-Programmable Gate Arrays (FPGAs) from Xilinx. These FPGAs are designed for prototyping and low-volume production, offering a flexible and cost-effective solution for implementing custom logic circuits. The XC3030-100PQ100C provides a user-configurable array of logic blocks, interconnected by programmable routing channels. The 'C' suffix typically denotes commercial temperature range. The '-100' indicates a specific speed grade for performance.

Applications:

• Prototyping: Rapid prototyping of digital circuits.
• Small Production Runs: Cost-effective solution for low-volume production.
• Educational Purposes: Ideal for teaching digital design principles.
• Glue Logic: Implementing custom interface logic.
• State Machines: Implementing complex sequential control circuits.

Features:

• Configurable Logic Blocks (CLBs): User-configurable logic blocks for implementing combinatorial and sequential logic.
• Programmable Interconnect: Flexible routing channels for connecting logic blocks.
• Input/Output Blocks (IOBs): Programmable I/O pins for interfacing with external devices.
• Static CMOS Technology: Low power consumption.
• Wide Operating Voltage Range: Versatile for different system requirements.
• On-Chip Test Circuitry: Facilitates testing and debugging.
• User-Programmable: Easily programmed using Xilinx development tools.

Benefits:

• Flexibility: Allows for easy modification and adaptation to changing design requirements.
• Fast Prototyping: Reduces development time by enabling rapid prototyping.
• Cost-Effectiveness: Provides a cost-effective solution for low-volume production.
• Reduced Design Risk: Allows for design verification before committing to custom silicon.
• Simplified Design Process: Simplifies the design process compared to traditional gate arrays.

Additional Details:

The XC3030-100PQ100C is packaged in a 100-pin Plastic Quad Flat Pack (PQFP) package. The -100 indicates the speed grade of the device. It supports various configuration methods using Xilinx programming hardware and software. The specific logic capacity of the XC3030-100PQ100C can be found in the Xilinx XC3000 Family Data Book. The PQ100 package is suitable for surface mounting. Commercial temperature range (0°C to +70°C).
