Same model may have multiple batches, images only for reference.

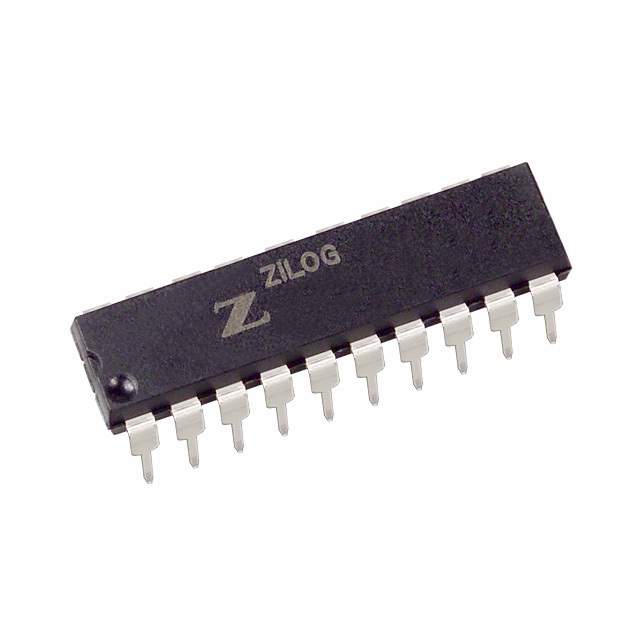

Z8F042APH020EG2156 Real Image
Same model may have multiple batches, images only for reference.

Z8F042APH020EG2156

Part No Z8F042APH020EG2156
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB FLASH 20DIP / MCU 8-bit eZ8 CISC 4KB Flash 3.3V 20-Pin PDIP
Datasheet
Z8F042APH020EG2156 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Zilog
Series Encore! XP
Packaging Tube
Core Processor eZ8
Core Size 8-Bit
Speed 20MHz
Connectivity IrDA, UART/USART
Peripherals Brown-out Detect/Reset, LED, LVD, POR, PWM, Temp Sensor, WDT
Number of I/O 17
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 1K x 8
Supply Voltage 2.7 V ~ 3.6 V
Data Converters A/D 7x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 105°C (TA)
Package 20-DIP (0.300", 7.62mm)
Manufacturer Package 20-PDIP
Win Source Part Number 800296-Z8F042APH020EG2156
Popularity Medium
Supply and Demand Status Limited
Quantity per package 18
Family Name Z8F042APH020
Country of Origin Taiwan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian Z8F042APH020EG2156 CAD Model

Description

The Zilog Z8F042APH020EG2156 is an 8-bit microcontroller from the Encore! XP series.

  • Package: 20-DIP (0.300", 7.62mm)
  • Speed: 20MHz
  • I/Os: 17
  • Connectivity: IrDA and UART/USART
  • Peripherals: brown-out detect/reset, LED, LVD, POR, PWM, temp sensor, and WDT
  • Program Memory Size: 4KB (4K x 8)
  • Program Memory Type: FLASH
  • EEPROM Size: 128 x 8
  • RAM Size: 1K x 8
  • Oscillator Type: internal
  • Supply Voltage: 2.7 V ~ 3.6 V
  • Supply and Demand Status: Limited
  • Quantity per Package: 18
