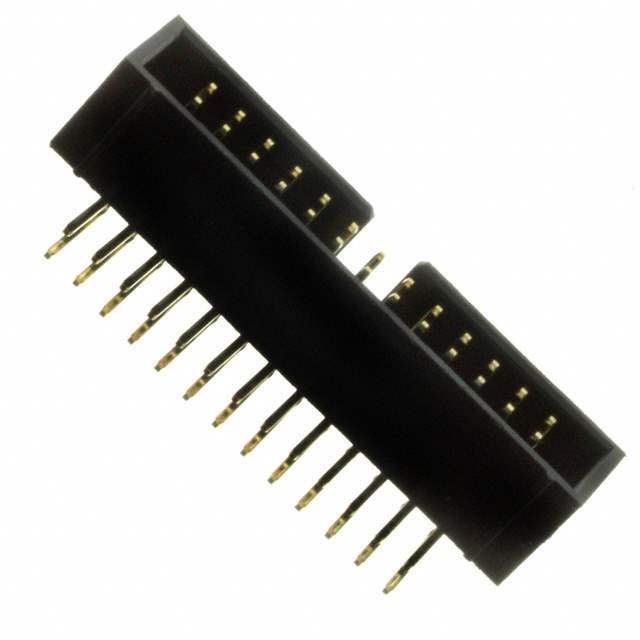

30326-5002HB 3M
Same model may have multiple batches, images only for reference.

30326-5002HB

Part No 30326-5002HB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER R/A 26POS 2.54MM
Datasheet
30326-5002HB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307916-30326-5002HB
Category Connectors, Interconnects >Rectangular Connectors >Headers, Male Pins
Mfr 3M
Packaging Bulk
Part Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian 30326-5002HB CAD Model

Description

  • All over gold flash
  • Sturdy body
  • End windows
  • Low cost
  • Straight or right angle
  • Ejector/latch option not available
  • Regulatory Information: Visit 3M.com/regs or contact your 3M representative to find the RoHS compliance status of the 3M part you are interested in.
