Same model may have multiple batches, images only for reference.

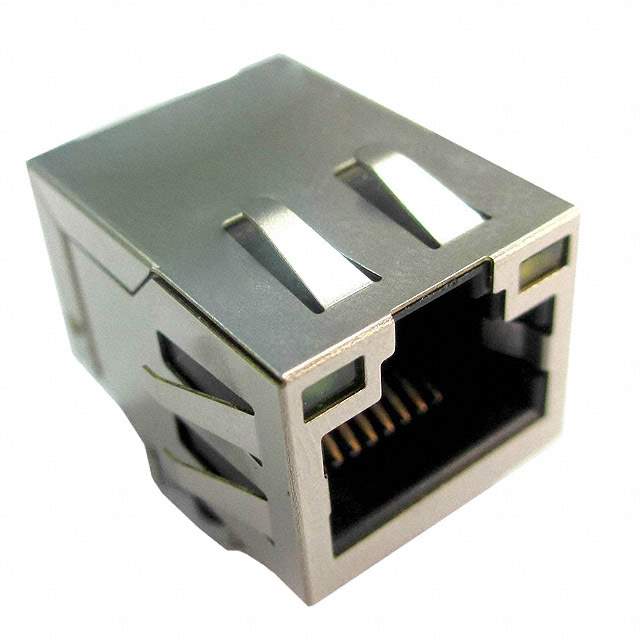

ARJ11C-MASAD-A-A-1MU2 Real Image
Same model may have multiple batches, images only for reference.

ARJ11C-MASAD-A-A-1MU2

Part No ARJ11C-MASAD-A-A-1MU2
Manufacturer Abracon LLC
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Abracon LLC
Series ARJ11C
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green - Green
Number of Cores per Jack 6
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names ARJ11CMASADAA1MU2,ARJ11C-MASAD- A-A-1MU2,ARJ11C-MASAD- A-A-1MU2-ND,-ARJ11C-MASAD-A-A-1MU2
Standard Package 60
Win Source Part Number 1117616-ARJ11C-MASAD-A-A-1MU2
Ultra Librarian 3D Model Ultra Librarian ARJ11C-MASAD-A-A-1MU2 CAD Model

Description

The modular connector is a 90-degree angle (right) RJ45 jack with magnetics. It has a board lock feature and one row of contacts with solder termination. The contact finish is gold with a thickness of 6.00µin (0.152µm). The device has a green LED color and a shielding EMI finger. It is suitable for 10/100/1000 Base-T and AutoMDIX applications. The MSL level is 1 (unlimited), and the REACH status is unaffected. The manufacturer is Abracon LLC.
