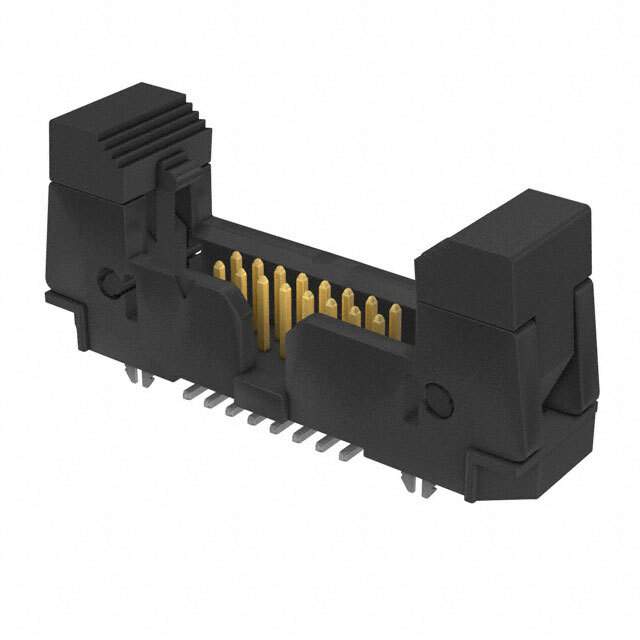

EHF-108-01-F-D-SM-LC Real Image
Same model may have multiple batches, images only for reference.

EHF-108-01-F-D-SM-LC

Part No EHF-108-01-F-D-SM-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADRER 8POS 2ROW SMD LK CL / Conn Ejector Header HDR 16 POS 1.27mm Solder ST SMD Tube
Datasheet
EHF-108-01-F-D-SM-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series EHF
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 16
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.325" (8.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3μin (0.08μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock, Keying Slot
Operating Temperature Range -55°C ~ 125°C
Insulation Color Black
Current Rating 1.75A
Win Source Part Number 773695-EHF-108-01-F-D-SM-LC
Popularity Medium
Supply and Demand Status Limited
Family Name EHF
Introduction Date October 07, 2003
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EHF-108-01-F-D-SM-LC CAD Model

Description

The EHF-108-01-F-D-SM-LC header connector is a male pin connector that has 16 positions and is surface mountable.

  • Positions: 16
  • Mounting: Surface Mount
  • Pitch-Mating: 0.050" (1.27mm)
  • Row Spacing-Mating: 0.050" (1.27mm)
  • Series: EHF
  • Shrouding: 4 Walls
  • Fastening Type: Latch Lock/Eject Hooks
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Voltage Rating: -
  • Current Rating: 1.75A
  • Contact Finish-Mating Thickness: 3μin (0.08μm) Gold
  • Contact Finish-Post: Tin
  • Manufacturer: Samtec Inc.
  • Category: Connector and Interconnect
  • Popularity: Medium
  • Supply and Demand Status: Limited
