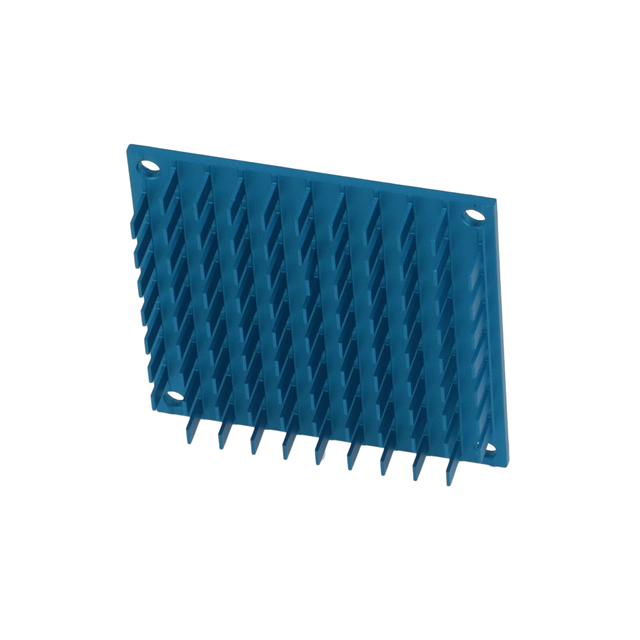

ATS-06D-206-C2-R0

Part No ATS-06D-206-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 60X60X10MM XCUT T766 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal>Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Tray
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 2.362" (60.00mm)
Width 2.362" (60.00mm)
Diameter -
Fin Height 0.394" (10.00mm)
Power Dissipation @ Temperature Rise -
Thermal Resistance @ Forced Air Flow 7.71°C/W @ 100 LFM
Thermal Resistance @ Natural -
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-06D
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Standard Package 50 pcs
Win Source Part Number 1383359-ATS-06D-206-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-06D-206-C2-R0 CAD Model

Description

The ATS-06D-206-C2-R0 is a pushPIN™ heat sink from Advanced Thermal Solutions Inc.

  • Dissipation @ Natural: -
  • Thermal Resistance @ Forced Air Flow: 7.71°C/W @ 100 LFM
  • Package Cooled: BGA, LGA, CPU, ASIC
  • Attachment Method: Push Pin
  • Shape: Square, Fins
  • Length: 2.362" (60.00mm)
  • Width: 2.362" (60.00mm)
  • Material: Aluminum
  • Color: Blue Anodized
  • REACH Status: Unaffected
