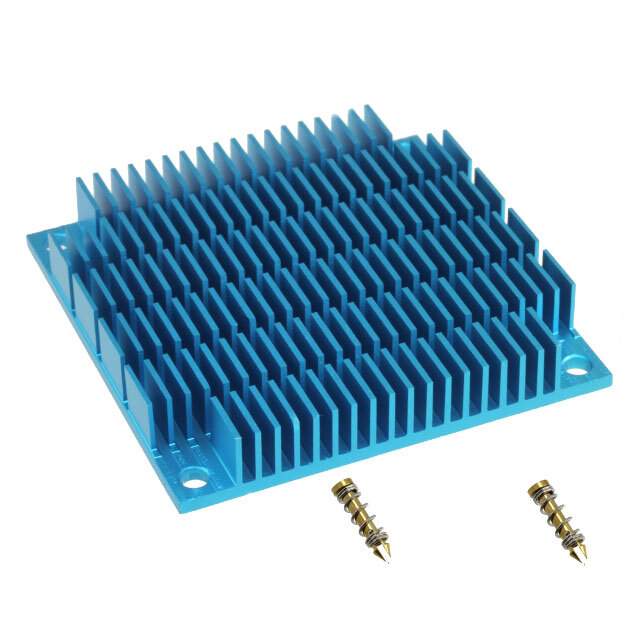

ATS-16B-21-C2-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-16B-21-C2-R0

Part No ATS-16B-21-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 60X60X10MM XCUT T766 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
ATS-16B-21-C2-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Tray
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 2.362" (60.00mm)
Width 2.362" (60.00mm)
Fin Height 0.394" (10.00mm)
Thermal Resistance @ Forced Air Flow 16.28°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-16B
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Names ATS-16B-21-C2-R0-ND,ATS26729
Standard Package 50
Win Source Part Number 1154872-ATS-16B-21-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-16B-21-C2-R0 CAD Model

Description

The Advanced Thermal Solutions Inc. 1154872-ATS-16B-21-C2-R0 pushPIN heat sink is designed for use in thermal management applications.

  • Manufacturer: Advanced Thermal Solutions Inc.
  • Mounting: Top Mount
  • Shape: Square with fins
  • Material: Aluminum
  • Package Cooled: Assorted (BGA, LGA, CPU, ASIC...)
  • Attachment Method: Push Pin
  • Width and Length: 2.362 inches (60.00mm)
  • Fin Height: 0.394 inches (10.00mm)
  • Thermal Resistance: 16.28°C/W @ 100 LFM forced air flow
  • Finish: Blue Anodized
  • REACH: Unaffected
  • Description: Reliable solution for dissipating heat in electronic components.
