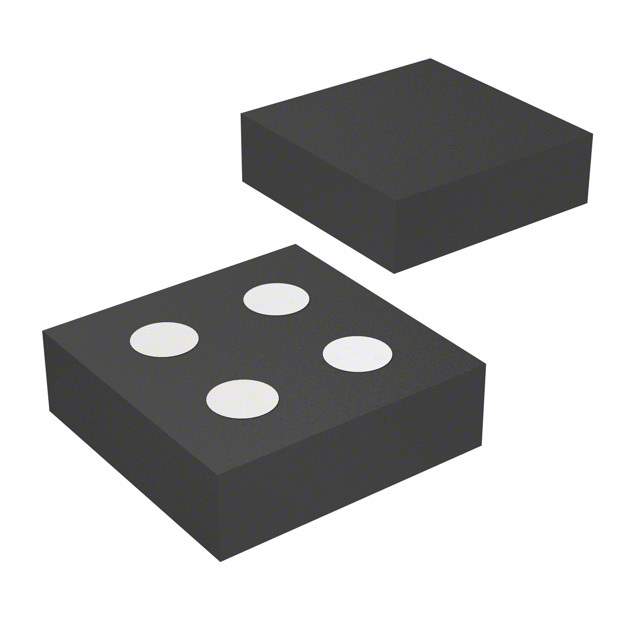

AOC2401 Real Image
Same model may have multiple batches, images only for reference.

AOC2401

Part No AOC2401
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 3A 4WLCSP / Trans MOSFET P-CH 30V 3A 4-Pin Alpha DFN
Datasheet
AOC2401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type P
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 10V
Vgs(th) (Maximum) @ Id 1.3V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 40nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1327pF @ 15V
Vgs (Maximum) ±12V
Power Dissipation (Maximum) 550mW (Ta)
Rds On (Maximum) @ Id, Vgs 41 mOhm @ 1.5A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 4-AlphaDFN (1.57x1.57)
Package 4-SMD, No Lead
Win Source Part Number 768544-AOC2401
Popularity Medium
Supply and Demand Status Limited
Family Name AOC2401
Introduction Date November 26, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AOC2401 CAD Model

Description

The AOC2401 is an electronic component manufactured by Alpha & Omega Semiconductor Inc.

  • Supply and Demand Status: Limited
  • Win Source Part Number: 768544-AOC2401
  • Type: P-Channel MOSFET
  • Drain Source Voltage: 30V
  • Continuous Drain Current: 3A (Ta) @ 25°C
  • Rds On (Maximum) @ Id, Vgs: 41 mOhm @ 1.5A, 10V
  • Vgs(th) (Maximum) @ Id: 1.3V @ 250μA
  • Gate Charge (Qg) (Maximum) @ Vgs: 40nC @ 10V
  • Input Capacitance (Ciss) (Maximum) @ Vds: 1327pF @ 15V
