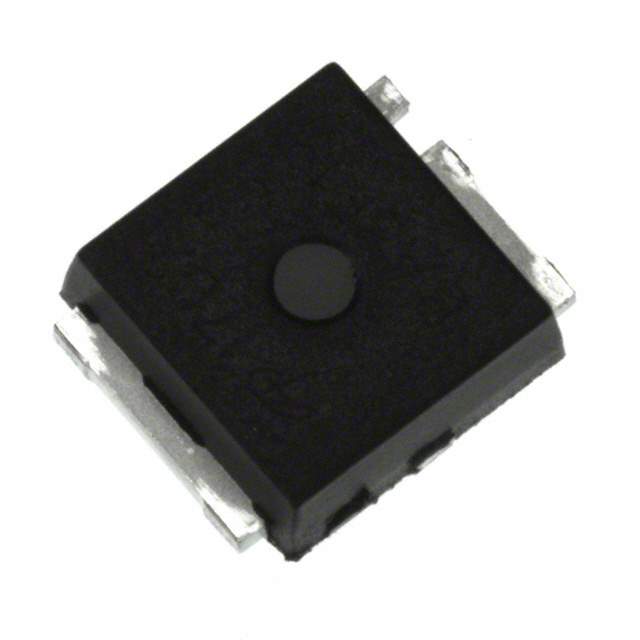

AOL1424 Real Image
Same model may have multiple batches, images only for reference.

AOL1424

Part No AOL1424
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel Enhancement Mode Field Effect Transistor
Datasheet
AOL1424 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 15A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 2.5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 48nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 2170pF @ 15V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2.2W (Ta), 50W (Tc)
Rds On (Maximum) @ Id, Vgs 6.5 mOhm @ 20A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package UltraSO-8
Package 3-PowerSMD, Flat Leads
Win Source Part Number 1144963-AOL1424
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Limited
Family Name AOL1424
Introduction Date July 13, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian AOL1424 CAD Model

Description

The Alpha & Omega Semiconductor Inc. 1144963-AOL1424 is a MOSFET that comes in reel TR packaging.

  • Packaging: reel TR
  • Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 70A (Tc)
  • Power Dissipation (Maximum): 2.2W (Ta), 50W (Tc)
