Same model may have multiple batches, images only for reference.

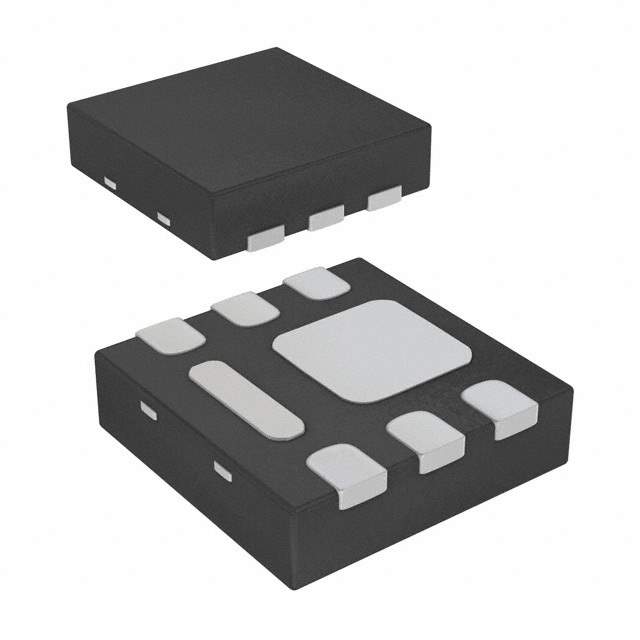

AON2405 Real Image
Same model may have multiple batches, images only for reference.

AON2405

Part No AON2405
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 8A 6DFN
Datasheet
AON2405 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 900mV @ 250μA
Max Gate Charge 18nC @ 4.5V
Max Input Capacitance 1025pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 2.8W (Ta)
Maximum Rds On at Id,Vgs 32 mOhm @ 8A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DFN-EP (2x2)
Dimension 6-UDFN Exposed Pad
Win Source Part Number 1017003-AON2405
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON2405 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON2405 is a P-Channel MOSFET that is designed for use in a wide range of applications.

  • Maximum Power Dissipation: 2.8W (Ta)
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current @ 25°C: 8A (Ta)
  • Gate-Source Threshold Voltage: 900mV @ 250μA
  • Maximum Gate Charge: 18nC @ 4.5V
  • Case/Package: 6-DFN-EP (2x2)
  • Temperature Range: -55°C to 150°C (TJ)
