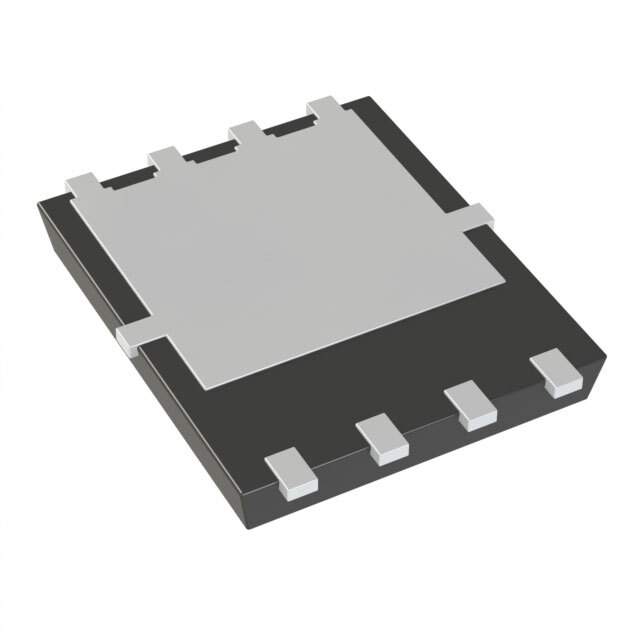

The Alpha & Omega Semiconductor Inc. AON6548 is an N-channel MOSFET with a power dissipation of 7.4W (Ta) and 83W (Tc).

• Channel Type: N-channel
• Power Dissipation: 7.4W (Ta) and 83W (Tc)
• Drive Voltage (Max Rds On): 4.5V
• Drive Voltage (Min Rds On): 10V
• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current @ 25°C (Ta): 52A
• Continuous Drain Current @ 25°C (Tc): 85A
• Gate-Source Threshold Voltage: 2.2V @ 250μA
• Maximum Gate Charge: 90nC @ 10V
• Maximum Input Capacitance: 4290pF @ 15V
• Mounting: Surface Mountable
• Package: 8-DFN (5x6)
• Leads: Flat Leads
