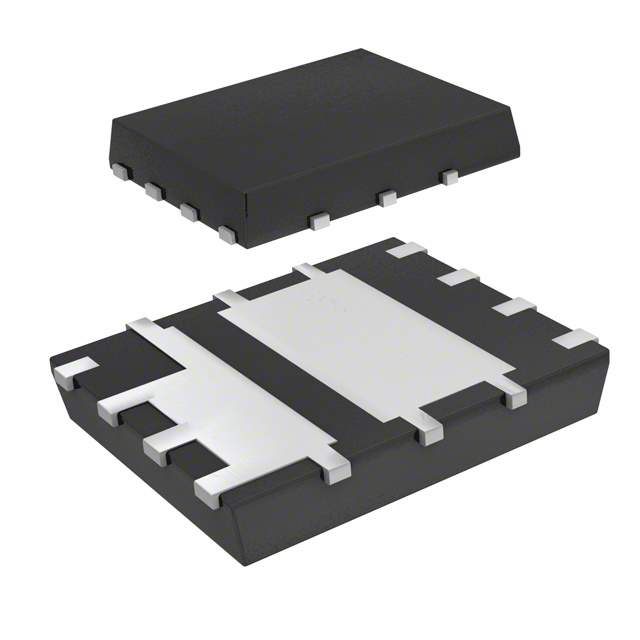

AON6980 Real Image
Same model may have multiple batches, images only for reference.

AON6980

Part No AON6980
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 18A/27A 8DFN / Trans MOSFET N-CH 30V 28A/36A 8-Pin DFN-B EP T/R
Datasheet
AON6980 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Series SRFET
Packaging Reel package
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 18A, 27A
Rds On (Maximum) @ Id, Vgs 6.8 mOhm @ 20A, 10V
Vgs(th) (Maximum) @ Id 2.2V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 22nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1095pF @ 15V
Power - Max 3.5W, 4.1W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 8-PowerVDFN
Manufacturer Package 8-DFN (5x6)
Win Source Part Number 768561-AON6980
Popularity Medium
Supply and Demand Status Limited
Family Name AON6980
Introduction Date January 23, 2014
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian AON6980 CAD Model

Description

The Alpha & Omega Semiconductor Inc. SRFET is a high-performance product that is commonly used in electronic devices. The product comes in a reel package and is designed to operate in a temperature range with the following specifications:

  • Temperature Range: -55°C to 150°C
  • Supply and Demand: Limited
