AOV20S60 Alpha & Omega Semiconductor Inc. AOV20S60 Real Image AOV20S60 real image
Same model may have multiple batches, images only for reference.

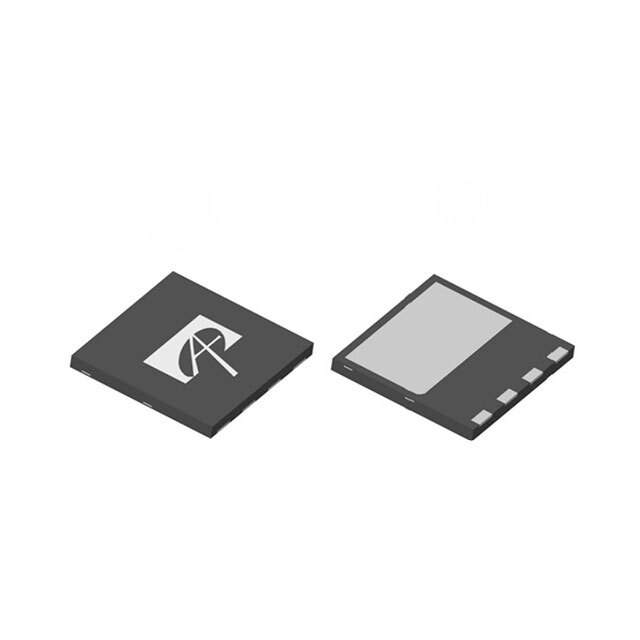

AOV20S60 Alpha & Omega Semiconductor Inc. AOV20S60 Real Image AOV20S60 real image
AOV20S60 Alpha & Omega Semiconductor Inc. AOV20S60 Real Image AOV20S60 real image
Same model may have multiple batches, images only for reference.

AOV20S60

Part No AOV20S60
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 18A 5DFB
Datasheet
AOV20S60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 600V
Continuous Drain Current at 25°C 3.6A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4.1V @ 250μA
Max Gate Charge 20nC @ 10V
Max Input Capacitance 1038pF @ 100V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 8.3W (Ta), 278W (Tc)
Maximum Rds On at Id,Vgs 250 mOhm @ 10A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 4-DFN-EP (8x8)
Dimension 4-VSFN Exposed Pad
Win Source Part Number 122327-AOV20S60
Family Name AOV20S60
Introduction Date October 08, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOV20S60 CAD Model

Description

AOV20S60

The AOV20S60 is a robust and highly efficient MOSFET tailored for modern electronic solutions. This product excels in both power management and signal amplification, making it an ideal choice for a variety of applications.

  • High-speed switching
  • Low on-resistance
  • Enhanced thermal performance

Applications and Projects

  • Power supply units
  • Motor control systems
  • DC-DC converters

Features and Benefits

  • Efficient power handling reduces energy losses
  • Compact design fits well in limited spaces
  • Reliable performance under varied temperature conditions
