Analog Devices Inc. AD811SQ/883 High Performance Video Op-Amp

The AD811SQ/883 is a high-performance video operational amplifier designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This product is specifically engineered to meet the stringent requirements of military and aerospace applications, complying with the 883 series standards for electronic components used in these demanding environments.

The AD811SQ/883 is optimized for exceptional video performance and is capable of driving high-performance video signals on capacitive loads with excellent linearity. This makes it an ideal choice for a wide range of applications, including high-resolution video systems, RGB amplifiers, and pulse amplifiers in radar and communication systems.

Key features of the AD811SQ/883 include:

• High output current drive of 50 mA, which allows it to drive multiple video loads or high capacitance loads with ease.
• Wide bandwidth of 120 MHz (G = +2), ensuring that the amplifier can handle high-speed signals without compromising image quality.
• Fast settling time, which is critical for maintaining sharp transitions and accurate color reproduction in video applications.
• Low differential gain and phase error, contributing to the accurate and consistent reproduction of video signals.
• Differential gain and phase of 0.02% and 0.05°, respectively, at 3.58 MHz, which is a testament to its precision in handling video signals.
• Operational over a wide power supply range of ±4.5 V to ±18 V, providing flexibility in system design.

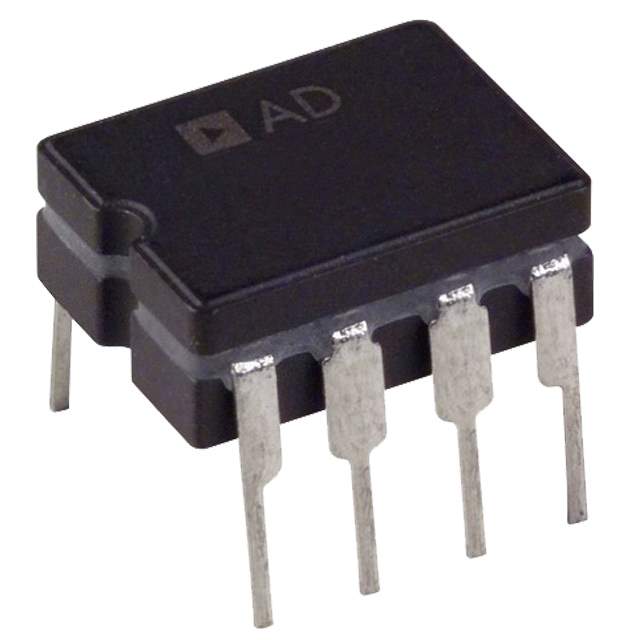

The robust construction of the AD811SQ/883 ensures reliable performance under extreme conditions, with a military temperature range of -55°C to +125°C. Its ceramic DIP (Dual In-line Package) is designed for enhanced durability and long-term reliability, which is critical for mission-critical military and aerospace systems.

Analog Devices Inc. has a reputation for producing high-quality components that meet the rigorous standards of the industries they serve. The AD811SQ/883 is a testament to their commitment to excellence, providing system designers with a reliable, high-performance solution for their most challenging video applications.
