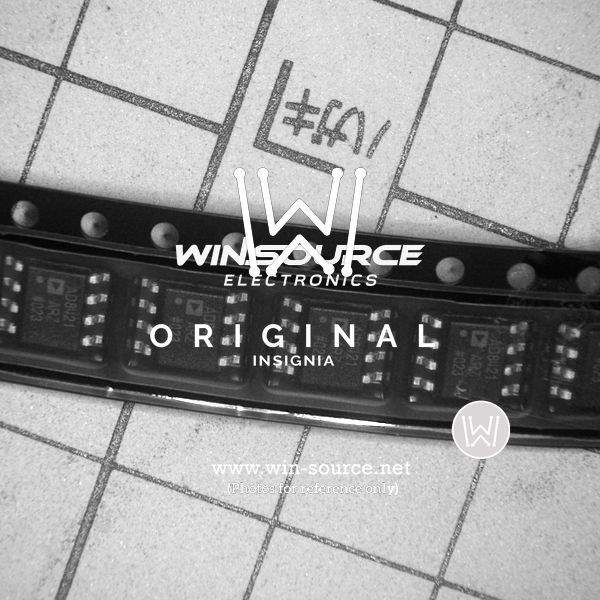

AD8421ARMZ-R7

Part No AD8421ARMZ-R7
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC INST AMP 1 CIRCUIT 8MSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features Instrumentation Amplifier Circuit - 8-MSOP
Manufacturer Analog Devices Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Case / Package 8-MSOP
Family Name AD8421
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Other Part Number AD8421ARMZ-R7-ND, AD8421ARMZ-R7TR, AD8421ARMZ-R7DKR, AD8421ARMZ-R7CT
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 909926-AD8421ARMZ-R7
Ultra Librarian 3D Model Ultra Librarian AD8421ARMZ-R7 CAD Model

Description

AD8421ARMZ-R7: Precision Instrumentation Amplifier by Analog Devices Inc.

The AD8421ARMZ-R7 is a state-of-the-art precision instrumentation amplifier from Analog Devices, Inc., renowned for its high accuracy, low noise, and exceptional ease of use. This product is designed to cater to a wide range of applications, including medical instrumentation, strain gages, precision data acquisition systems, and industrial process controls.

With its impressive input impedance and low input bias currents, the AD8421ARMZ-R7 is particularly well-suited for applications where a high degree of precision is a necessity. Its low offset voltage and drift ensure stable performance over a wide range of temperatures, making it a reliable choice for critical measurement tasks.

Key Features:

  • High Performance: The AD8421ARMZ-R7 boasts a gain bandwidth product of 10 MHz and a slew rate of 20 V/μs, allowing for rapid signal processing without sacrificing accuracy.
  • Low Noise: With a voltage noise density of only 1 nV/√Hz at 1 kHz, this instrumentation amplifier ensures a clean signal amplification, minimizing the impact of noise on measurement results.
  • Flexible Gain Configuration: Gain can be set from 1 to 10,000 with a single external resistor, providing versatility and ease of use in a variety of configurations.
  • High Common-Mode Rejection Ratio (CMRR): With a CMRR of 130 dB (G = 1), the AD8421ARMZ-R7 effectively rejects interference and noise that are common to both input leads, resulting in a more accurate and stable output.
  • Wide Supply Range: The device can operate from a single supply of 4.5 V to 36 V or dual supplies of ±2.25 V to ±18 V, accommodating a diverse set of power requirements.

The AD8421ARMZ-R7 comes in a compact, miniaturized package, making it an excellent choice for space-constrained applications. Its robust design ensures reliable performance even in harsh environments, and with the backing of Analog Devices' reputation for quality, you can trust this amplifier to deliver consistent results.

Whether you're designing a high-precision medical device, an industrial control system, or a sophisticated data acquisition platform, the AD8421ARMZ-R7 from Analog Devices Inc. is a superior choice that combines performance, flexibility, and reliability.
