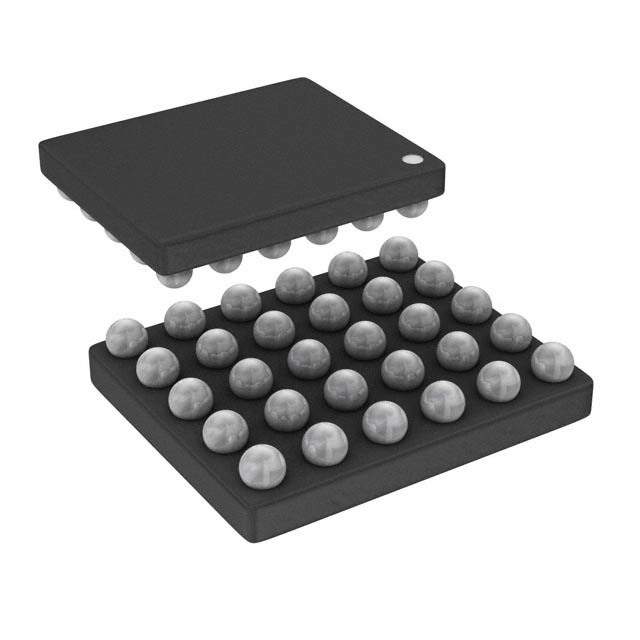

The ADV7390BCBZ-A-RL from Analog Devices Inc. is a high-performance, integrated video encoder that offers a comprehensive solution for converting digital video signals into analog formats. This encoder is designed to cater to a wide array of applications, including professional video editing, broadcasting, and industrial video systems. Its compact size and low-power consumption make it suitable for portable and battery-powered applications as well.

Key Features

• High-Quality Video Encoding: The ADV7390BCBZ-A-RL supports various video standards, including NTSC, PAL, and SECAM, providing crisp and clear video encoding for different regional requirements.
• Multiple Input Formats: It accepts a broad range of digital video input formats, making it versatile for use with different digital video sources.
• Advanced Power Management: The device features power-down modes and low-power operation, which are essential for energy-saving in mobile and handheld devices.
• Flexibility: The encoder's programmability via an I²C-compatible serial interface allows for easy integration and flexibility in various system designs.
• Integrated PLL: The on-chip phase-locked loop (PLL) generates the necessary clock frequencies, reducing the need for external components.

Applications

• Video Broadcasting Equipment
• Professional Video Editing Suites
• Industrial Video Systems
• Portable Video Devices
• Medical Imaging

Technical Specifications

The ADV7390BCBZ-A-RL operates over a temperature range of -40°C to +85°C and comes in a compact 32-lead LFCSP (Lead Frame Chip Scale Package) that ensures minimal footprint on the PCB. It is also RoHS compliant, adhering to environmental standards for hazardous substances.

Ordering Information

For ordering and purchasing information, the ADV7390BCBZ-A-RL is available with reel packaging for ease of manufacturing and assembly processes, ensuring a reliable supply for volume production needs.
