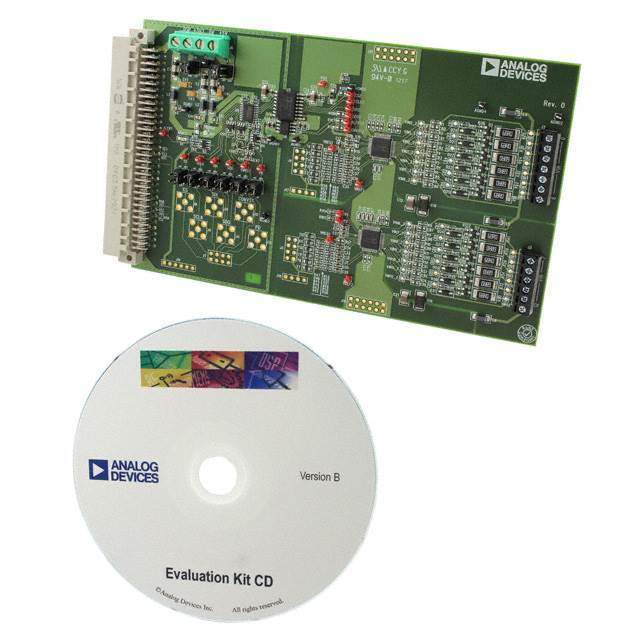

EVAL-AD7280AEDZ - Battery Monitoring System Evaluation Board by Analog Devices Inc.

The EVAL-AD7280AEDZ is a comprehensive evaluation board designed by Analog Devices Inc. to facilitate the testing and assessment of the AD7280A, a high-precision, lithium-ion battery monitoring system. This product is specifically engineered for applications that require precise monitoring of multiple battery cells, making it an ideal solution for electric vehicles, energy storage systems, and other battery-powered applications.

The AD7280A device itself is a stacked lithium-ion battery monitoring system that can measure the voltage of up to six cells in series. The EVAL-AD7280AEDZ board allows users to interface with the AD7280A through a variety of connection options, providing a flexible platform for development and prototyping.

Key features of the EVAL-AD7280AEDZ include:

• High-Accuracy Monitoring: The AD7280A offers exceptional accuracy in voltage measurement for each cell, ensuring reliable performance and safety in critical applications.
• Daisy-Chain Capability: Multiple AD7280A devices can be daisy-chained together to monitor more than six cells, providing scalability for larger battery systems.
• Temperature Monitoring: In addition to voltage measurement, the system is capable of measuring temperature, which is vital for maintaining optimal battery performance and longevity.
• Isolation: The evaluation board includes necessary circuitry to provide isolation between the high-voltage battery stack and the low-voltage controller circuitry.
• Flexible Interface: The board supports a variety of communication interfaces, including SPI, allowing for easy integration with microcontrollers and other digital systems.
• Comprehensive Evaluation Tools: Analog Devices Inc. provides software tools and documentation to assist developers in utilizing the full capabilities of the AD7280A on the EVAL-AD7280AEDZ evaluation board.

The EVAL-AD7280AEDZ is not only a testament to Analog Devices Inc.'s commitment to quality and innovation but also an indispensable tool for engineers and designers working on advanced battery management systems. With its robust feature set and user-friendly design, this evaluation board is a perfect starting point for developing sophisticated battery monitoring solutions that meet the stringent demands of modern energy systems.
