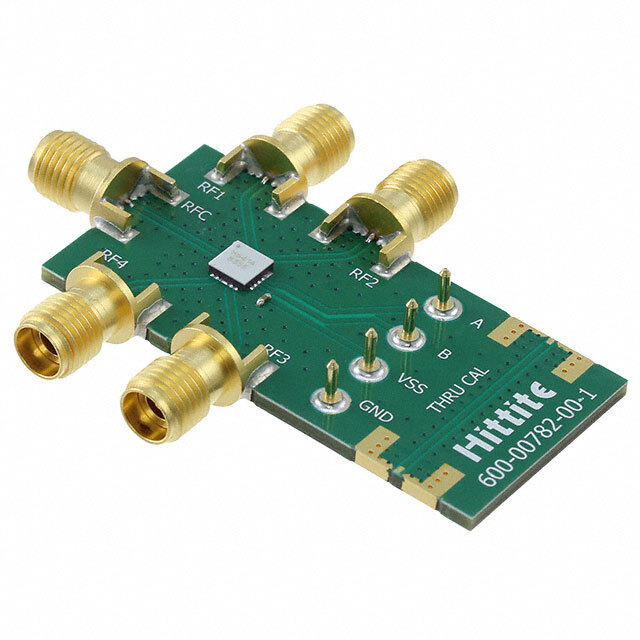

Product Overview: HMC641ALC4 from Analog Devices Inc.

The HMC641ALC4 is a high-performance, GaAs MMIC SP4T (Single Pole, Four Throw) non-reflective switch from Analog Devices Inc. Designed to operate within the frequency range of DC to 20 GHz, this switch is an ideal solution for diverse applications, including electronic warfare, military radios, radar systems, test instrumentation, and satellite communications.

With its wide frequency range, the HMC641ALC4 provides exceptional versatility. It delivers excellent isolation, typically 45 dB at midband, and a low insertion loss of 2.0 dB at 20 GHz, ensuring signal integrity and minimal attenuation. The switch also features an impressive input IP3 of 50 dBm, which contributes to its ability to handle high power levels and maintain linearity, making it suitable for complex signal environments.

The HMC641ALC4 is housed in a compact 4x4 mm ceramic LCC package, allowing for easy integration into space-constrained designs. It operates using a single positive control voltage of 0/+5V, simplifying the power supply requirements and making it user-friendly for a variety of design specifications. Additionally, the switch is RoHS compliant, adhering to environmental standards and regulations.

Other key features of the HMC641ALC4 include its fast switching speed of 6 ns and a non-reflective design, which minimizes signal echo and distortion. The switch's high isolation and low insertion loss make it an excellent choice for maintaining signal clarity and integrity in complex RF systems.

Analog Devices Inc. is known for its high-quality products and the HMC641ALC4 is no exception. It represents the company's commitment to providing advanced RF and microwave components that meet the rigorous demands of modern communication and defense systems. For design engineers looking for a reliable and high-performing RF switch, the HMC641ALC4 is a standout choice that combines functionality, efficiency, and durability.
