Product Overview: LT3032IDE-5#PBF

The LT3032IDE-5#PBF is a high-quality, dual-channel, low-noise, low-dropout linear regulator designed and manufactured by Analog Devices Inc. This component is specifically engineered to provide precision voltage regulation with a minimal dropout voltage, making it an ideal solution for sensitive electronic applications where a stable and clean power supply is critical.

Key Features

• Dual Output Voltages: The LT3032IDE-5#PBF offers two independent voltage outputs, each capable of delivering up to 150mA of current. This feature allows designers to power multiple levels of a system with a single integrated device.
• Low Noise: With its advanced design, this regulator provides exceptionally low output noise, a crucial parameter for RF and precision analog circuits.
• Low Dropout Voltage: The device operates with a very low dropout voltage, ensuring efficient regulation even when the input-to-output voltage differential is minimal.
• Wide Input Voltage Range: It accepts input voltages from 2.6V to 16V, offering flexibility for various power supply designs.
• Adjustable and Fixed Output Versions: The LT3032IDE-5#PBF is available in both adjustable and fixed output versions, providing design versatility for specific application requirements.

Applications

The LT3032IDE-5#PBF is suitable for a wide range of applications, including:

• Portable Battery-Powered Equipment
• Power Supplies for Precision Instrumentation
• Automotive Electronics
• Industrial Control Systems
• Medical Devices

Product Specifications

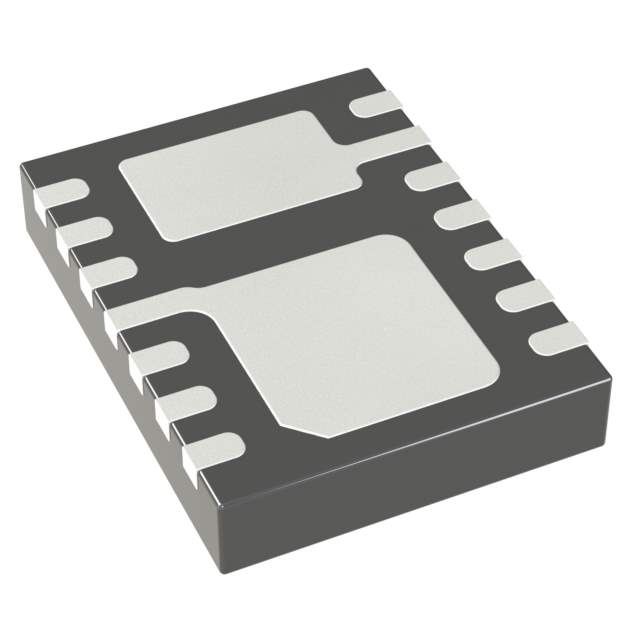

The LT3032IDE-5#PBF comes in a compact 12-lead DFN package, which is ideal for space-constrained applications. It features over-temperature and over-current protection, ensuring reliable operation under various conditions. The fixed output version is set to 5V, providing a standardized voltage for many digital and analog circuits.

With its combination of dual outputs, low noise, and high reliability, the LT3032IDE-5#PBF from Analog Devices Inc. is an excellent choice for designers looking to enhance the performance and efficiency of their electronic systems.
