Same model may have multiple batches, images only for reference.

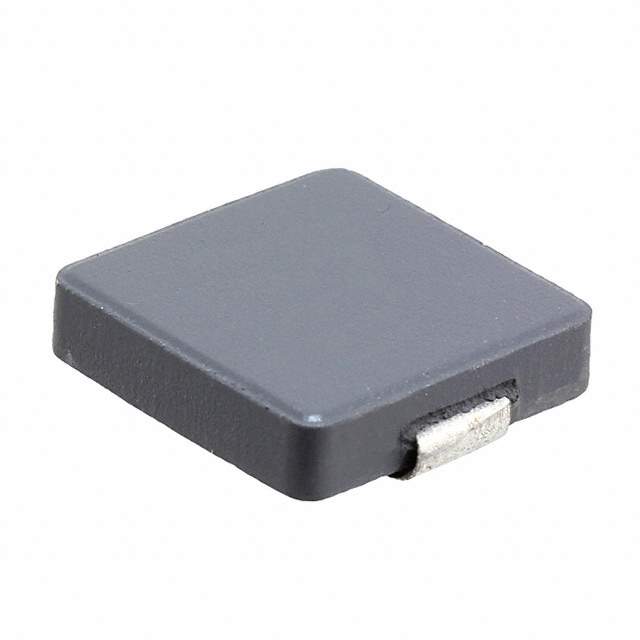

SRP1238A-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRP1238A-4R7M

Part No SRP1238A-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1238A-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1238A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 10 A
Current - Saturation (Isat) 24A
Shielding Shielded
DC Resistance (DCR) 18.5mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 15MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SRP1238A
Other Names SRP1238A-4R7MTR,SRP1238A-4R7MCT,SRP1238A-4R7MDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274086-SRP1238A-4R7M
Ultra Librarian 3D Model Ultra Librarian SRP1238A-4R7M CAD Model

Description

The Bourns Inc. SRP1238A-4R7M is a shielded inductor that belongs to the SRP1238A series.

  • Type: Drum core, wirewound
  • Inductance: 4.7 μH
  • Height: 0.138 inches
  • Package: Tape and reel
  • Tolerance: ±20 percent
  • Core Material: Carbonyl powder
  • Q @ Freq: 20 @ 100kHz
  • Frequency Self-Resonant: 15MHz
  • DC Resistance (DCR): 18.5mOhm Max
  • Supplier Device Package: Nonstandard
  • Temperature Range: -40°C to 150°C
The Bourns Inc. SRP1238A-4R7M is a reliable and efficient inductor that can be used in various electronic applications.
