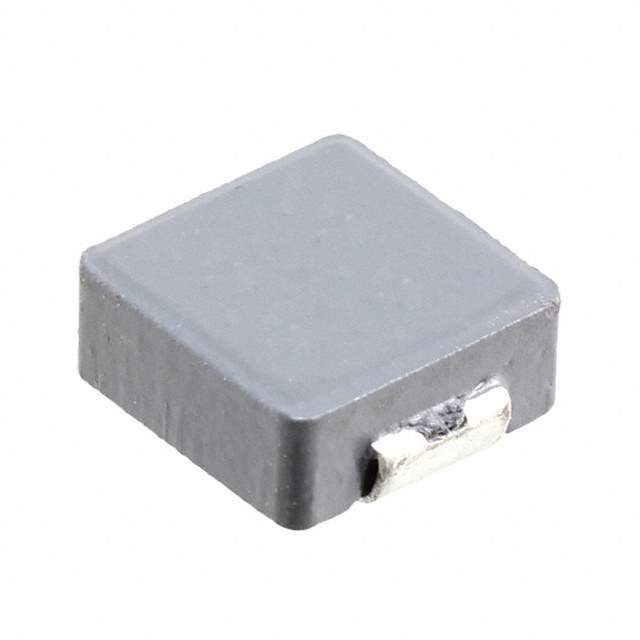

SRP7028A-R10M Real Image
Same model may have multiple batches, images only for reference.

SRP7028A-R10M

Part No SRP7028A-R10M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP7028A-R10M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7028A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 100 nH
Tolerance ±20%
Current Rating (Amps) 32.5 A
Current - Saturation (Isat) 60A
Shielding Shielded
DC Resistance (DCR) 1.7mOhm Max
Q @ Freq 5 @ 100kHz
Frequency - Self Resonant 300MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP7028A
Other Names 118-SRP7028A-R10MDKR,SRP7028A-R10M,118-SRP7028A-R10MCT,118-SRP7028A-R10MTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273812-SRP7028A-R10M
Ultra Librarian 3D Model Ultra Librarian SRP7028A-R10M CAD Model

Description

The Bourns Inc. SRP7028A series of fixed inductors is a reliable solution for various applications.

  • Type: Drum core, wirewound
  • Shielding: Yes
  • Inductance: 100 nH
  • Tolerance: +/-20%
  • Package Type: Tape & reel
  • Package/Case: Nonstandard
  • Dimension: 0.287" L x 0.260" W (7.30mm x 6.60mm)
  • Height-Seated (Max): 0.118" (3.00mm)
  • Temperature Range: -40°C to 150°C
  • Current Rating: 32.5 A
  • DC Resistance (DCR): 1.7mOhm Max
  • Inductance Frequency Test: 100kHz
  • ECCN: EAR99
  • REACH Status: REACH unaffected
  • HTSUS: 8504.50.8000
