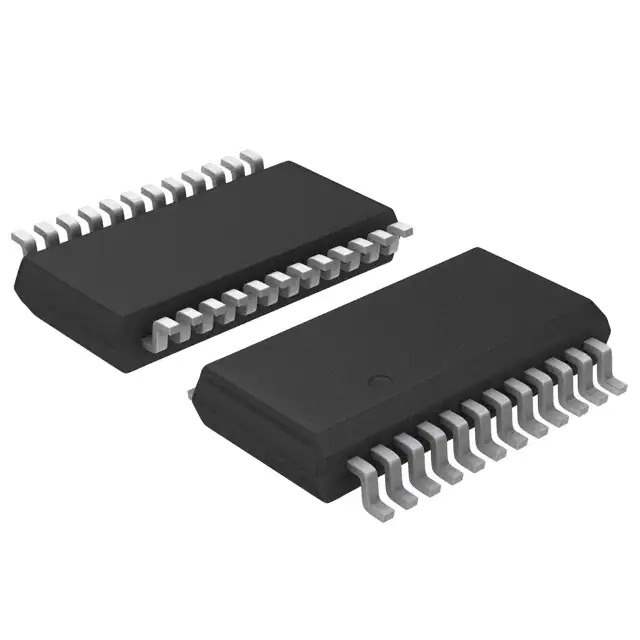

CAT4016VSR

Name: CAT4016VSR
Brand: Catalyst Semiconductor
SKU: 865810
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CAT4016VSR
Manufacturer	Catalyst Semiconductor
Catalog	PMIC - LED Drivers
Description	IC LED DRVR LIN PWM 80MA 24TSSOP
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr	Catalyst Semiconductor
Series	CAT4016
Package	Bulk
Product Status	Active
Type	Linear
Topology	Shift Register
Internal Switch(s)	Yes
Number of Outputs	16
Voltage - Supply (Min)	3V
Voltage - Supply (Max)	5.5V
Voltage - Output	5.5V
Current - Output / Channel	80mA
Frequency	25MHz
Dimming	PWM
Applications	Signage
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	24-TSSOP
Base Product Number	CAT4016
Standard Package	608 pcs
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	865810-CAT4016VSR
Ultra Librarian 3D Model	Ultra Librarian CAT4016VSR CAD Model

Alternative Products

Description

The CAT4016VSR is a power management integrated circuit (IC) specifically designed for LED drivers.

Series: CAT4016
Operation Type: linear
Voltage Output: 5.5V
Frequency: 25MHz
Application: signage
Outputs: 16
Current Output: 80mA per channel
Features: internal switch
Topology: shift register
Dimming: pulse width modulation (PWM)
Voltage Supply: 3V to 5.5V
Mounting Type: surface mountable
Package: 24-TSSOP
Operating Temperature Range: -40°C to 85°C
Product Status: active
Manufacturer: Catalyst Semiconductor
