2N5109 Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

2N5109

Part No 2N5109
Manufacturer Central Semiconductor Corp
Catalog Transistors - FETs, MOSFETs - RF

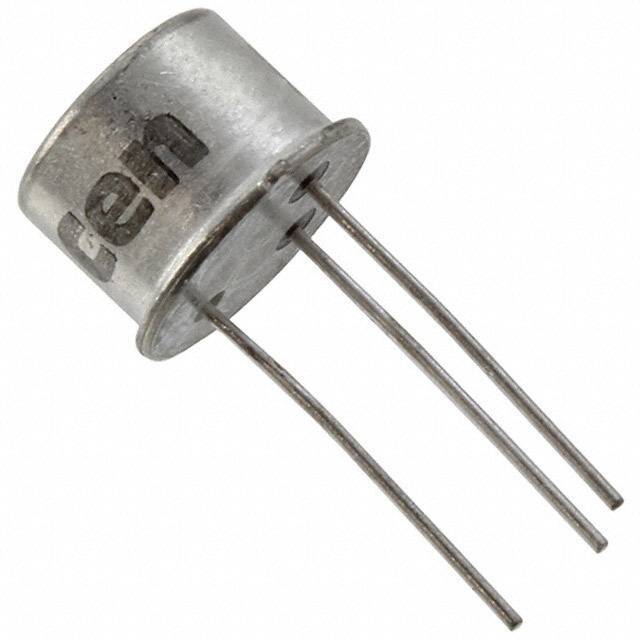

Description TRANS RF NPN 20V 400MA TO-39
Datasheet
2N5109 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Maximum) 20V
Frequency - Transition 1.2GHz
Noise Figure (dB Typ @ f) 3dB @ 200MHz
Power - Max 1W
DC Current Gain (hFE) (Minimum) @ Ic, Vce 40 @ 50mA, 15V
Current - Collector (Ic) (Maximum) 400mA
Operating Temperature Range -65°C ~ 200°C (TJ)
Mounting Style Through Hole
Package TO-205AD, TO-39-3 Metal Can
Manufacturer Package TO-39
Win Source Part Number 762248-2N5109
Popularity Medium
Supply and Demand Status Balance
Family Name 2N5109
Introduction Date May 18, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2N5109 CAD Model

Description

The 2N5109 is a high frequency NPN transistor manufactured by Central Semiconductor Corp.

  • Maximum Power: 1W
  • Maximum Frequency: 1.2GHz
  • DC Current Gain: 40 @ 50mA, 15V
  • Package: TO-39-3 metal can
