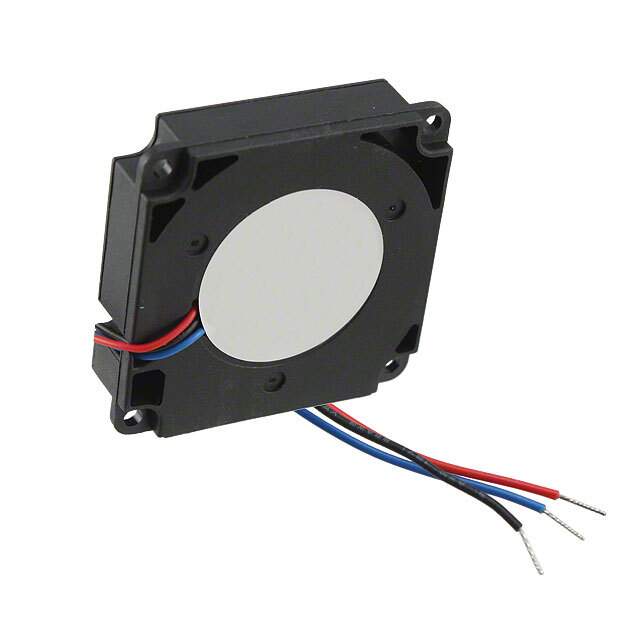

BFB0405HHA-AF00 Real Image
Same model may have multiple batches, images only for reference.

BFB0405HHA-AF00

Part No BFB0405HHA-AF00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN BLOWER 40X10MM 5VDC WIRE / Fan Blower 5VDC Square - 40mm L x 40mm H Ball 3.0 CFM (0.084m³/min) 3 Wire Leads
Datasheet
BFB0405HHA-AF00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series BFB
Package Bulk
Voltage - Rated 5VDC
Size / Dimension Square - 40mm L x 40mm H
Width 10.00mm
Air Flow 3.0 CFM (0.084m³/min)
Static Pressure 0.564 in H2O (140.5 Pa)
Bearing Type Ball
Fan Type Blower
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 34.5dB(A)
Power (Watts) 800 mW
RPM 8500 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.027 lb (12.25 g)
Current Rating (Amps) 0.160A
Voltage Range 4 ~ 5.5VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 30000 Hrs @ 40°C
Base Product Number BFB0405
Standard Package 640
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6560
Win Source Part Number 1349588-BFB0405HHA-AF00
Ultra Librarian 3D Model Ultra Librarian BFB0405HHA-AF00 CAD Model

Description

The BFB0405HHA-AF00 is a DC brushless fan designed for thermal management applications.

  • Features: Locked Rotor Protection, Speed Sensor (Tach)
  • Voltage Range: 4-5.5VDC
  • Power Rating: 800mW
  • Size: 40mm L x 40mm H
  • Weight: 0.027 lb (12.25 g)
  • Air Flow: 3.0 CFM (0.084m³/min)
  • Static Pressure: 0.564 in H2O (140.5 Pa)
  • Noise: 34.5dB(A)
  • Speed: 8500 RPM
  • Material: Plastic
  • Bearing Type: Ball
  • Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
  • Lifetime: 30000 Hrs @ 40°C
  • Approvals: CE, CSA, UL, and VDE
