Diodes Incorporated 74LVC1T45FX4-7: Dual Supply Translating Transceiver

The 74LVC1T45FX4-7 from Diodes Incorporated is a versatile, dual supply translating transceiver designed to provide seamless communication between different voltage domains in a compact and efficient package. This high-speed CMOS device is specifically engineered to address the needs of multi-voltage systems where signal integrity and low-power consumption are critical. The 74LVC1T45FX4-7 ensures reliable bidirectional voltage level translation, making it an ideal choice for interfacing devices operating at different logic levels.

Featuring a wide voltage range, the transceiver can operate on a V<sub>CCA from 1.65V to 3.6V and a V<sub>CCB from 2.3V to 5.5V, enabling it to translate signals between lower voltage and higher voltage logic levels efficiently. This flexibility makes the 74LVC1T45FX4-7 suitable for a broad array of applications, from battery-powered devices to industrial controls.

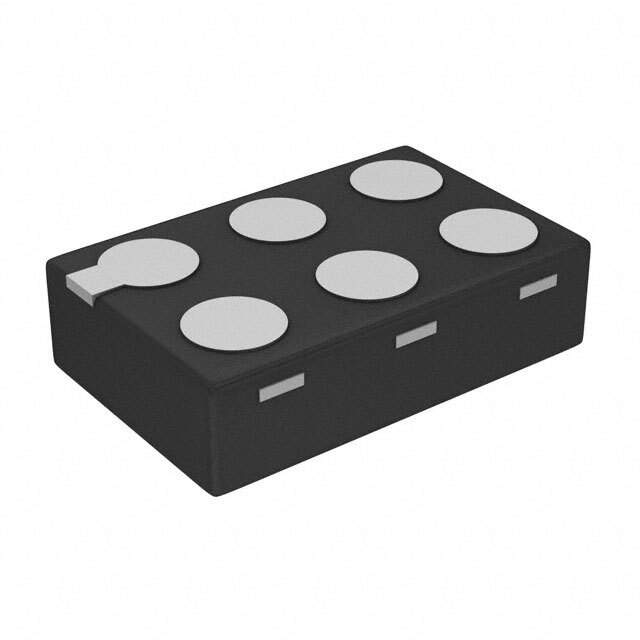

The 74LVC1T45FX4-7 comes in an ultra-small X2-DFN1410-6 package, which minimizes board space and is perfect for space-constrained applications. Its pin configuration is optimized for easy PCB routing, and the device supports bidirectional data flow without the need for a direction control signal, simplifying the design and reducing the number of required GPIOs.

Key features of the 74LVC1T45FX4-7 include:

• Low-voltage operation – V<sub>CCA input level down to 1.65V and V<sub>CCB down to 2.3V
• High-speed performance – supports data rates up to 420 Mbps (210 MHz)
• Auto-direction sensing – no direction control pin needed
• Power-off protection – inputs and outputs are protected when the device is powered off
• Low power consumption – suitable for battery-operated devices
• ESD protection – exceeds JESD 22, ensuring robustness for real-world applications

Whether you are designing consumer electronics, telecommunications infrastructure, or complex industrial systems, the 74LVC1T45FX4-7 provides a reliable and straightforward solution for voltage level translation. By integrating this transceiver into your design, you can ensure seamless communication between components, regardless of their operating voltage levels, while maintaining signal integrity and minimizing power draw.

Diodes Incorporated's commitment to quality and performance is evident in the 74LVC1T45FX4-7, making it a smart choice for designers looking to bridge the gap between different logic families within their electronic systems.
