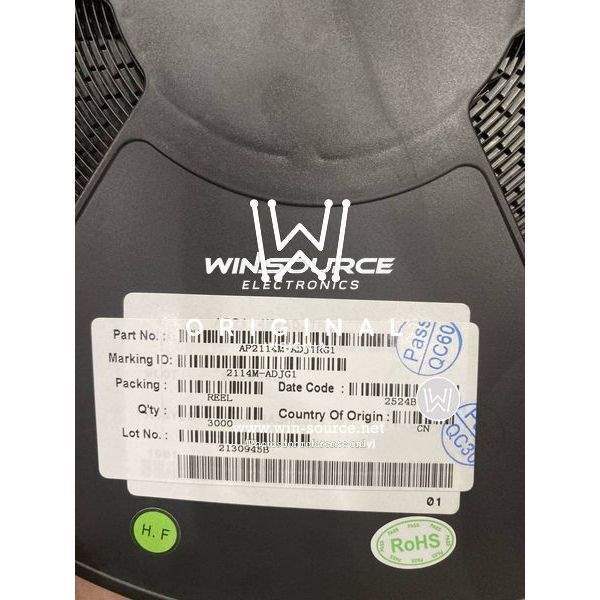

Product Overview: AP2114M-ADJTRG1 by Diodes Incorporated

The AP2114M-ADJTRG1 is a highly efficient, low dropout linear regulator designed and produced by Diodes Incorporated, a leading manufacturer in the semiconductor market. This regulator is well-suited for a variety of applications, particularly where a stable and reliable voltage source is required. With its adjustable output voltage feature, the AP2114M-ADJTRG1 offers flexibility and precision, making it an ideal choice for designers looking to tailor their power supply to specific needs.

Key Features

• Adjustable Output Voltage: This regulator allows users to set the output voltage to their desired level, providing versatility in its application across different voltage requirements.
• Low Dropout: The low dropout capability ensures efficient operation even when the input voltage is close to the output voltage, enhancing battery life in portable devices.
• High Output Current: Capable of delivering up to 1A of continuous output current, this regulator can support a wide range of power demands.
• Thermal Protection: The built-in thermal protection feature safeguards the device against overheating, thus ensuring long-term reliability and stability.
• Current Limit Protection: It also includes current limit protection to prevent damage from overcurrent conditions, adding an extra layer of security to your design.
• Low Quiescent Current: Its low quiescent current minimizes standby power consumption, which is critical for battery-powered applications.

Applications

The AP2114M-ADJTRG1 is widely used in various electronic devices, including:

• Portable and battery-powered devices
• Wireless communications equipment
• Consumer electronics
• Power management circuits

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the AP2114M-ADJTRG1 is no exception. It is manufactured under stringent quality control standards to ensure optimal performance and reliability. Whether you are developing a new project or upgrading an existing one, this adjustable LDO regulator is a solid choice for your power regulation needs.

With its robust feature set and flexible application potential, the AP2114M-ADJTRG1 stands out as a high-performance component for any power-sensitive design.
