DMN2080UCB4-7 - N-Channel Enhancement Mode Field Effect Transistor by Diodes Incorporated

The DMN2080UCB4-7 is a high-performance, N-Channel enhancement mode field effect transistor (FET) from Diodes Incorporated, designed for power switching and amplification applications. This MOSFET is a testament to Diodes Incorporated's commitment to providing energy-efficient and compact solutions for a wide range of electronic devices.

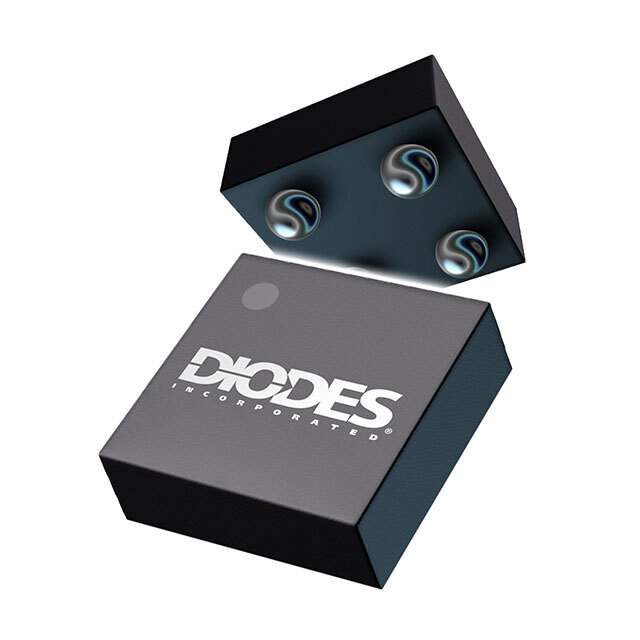

This particular MOSFET is housed in a small and flat lead DFN2020-6 (Type B) package, making it suitable for space-constrained applications where a low thermal resistance is required. The DMN2080UCB4-7 is capable of delivering a continuous drain current (ID) of 7.3A, which allows for efficient power management in circuits where high current handling is essential.

The device features a low on-resistance (RDS(on)) of just 24mΩ at VGS = 4.5V, which minimizes power loss and improves overall efficiency. This characteristic is especially important in battery-powered equipment, where energy conservation is key to extending operational life. The low threshold voltage (VGS(th)) ensures that the MOSFET can be driven at lower gate voltages, making it compatible with low-voltage logic signals and reducing the need for level-shifting circuitry.

With a maximum drain-source voltage (VDS) of 20V, the DMN2080UCB4-7 is well-suited for a variety of applications, including load switch, power management, and DC-DC conversion in portable devices, consumer electronics, and power supply systems. Its fast switching characteristics also make it an excellent choice for high-frequency circuits.

Additional features of the DMN2080UCB4-7 include low input capacitance (Ciss), which enhances the AC performance during high-speed switching. The device also boasts a robust body diode that can handle reverse recovery, which is particularly useful in half-bridge and full-bridge topologies. Moreover, it is RoHS compliant and halogen-free, ensuring that it meets environmental standards for electronic components.

Overall, the DMN2080UCB4-7 MOSFET by Diodes Incorporated is a reliable and efficient solution for designers looking to optimize their power management systems with a component that offers low power loss, high current capacity, and a compact footprint.
